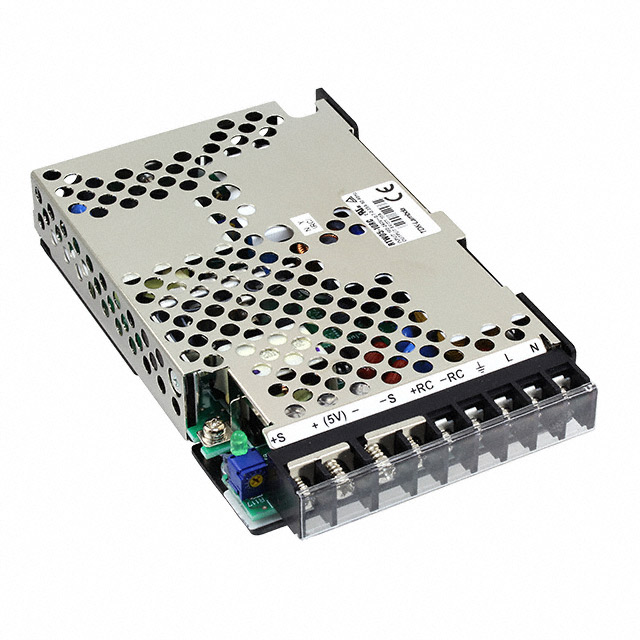

RTW15-10RC

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), INDUSTRIAL, 1 OUTPUTS, 150 W, 15 V, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Safety Data Sheet EN +2

RTW15-10RC

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), INDUSTRIAL, 1 OUTPUTS, 150 W, 15 V, 10 A

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTW15-10RC

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	10 A
Efficiency	87 %
Features	DC Input Capable, Universal Input, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	180 mm
Size / Dimension [x]	7.09 in
Size / Dimension [y]	1.18 in
Size / Dimension [y]	30 mm
Size / Dimension [z]	3.62 "
Size / Dimension [z]	92 mm
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

RTW15 Series

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Power (Watts)	Current - Output 1	Mounting Type	Voltage - Isolation	Number of Outputs	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Features	Approval Agency	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
TDK-LAMBDA RTW15-10R	Open Frame	-10 °C	71 °C	15 V	150 W	10 A	Chassis Mount	3000 V	1	87 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)
TDK-LAMBDA RTW15-10RC	Enclosed	-10 °C	71 °C	15 V	150 W	10 A	Chassis Mount	3000 V	1	87 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	3.62 "	1.18 in	180 mm	7.09 in	92 mm	30 mm
TDK-LAMBDA RTW15-20RL	Open Frame	-10 °C	71 °C	15 V	300 W	20 A	Chassis Mount	3000 V	1	86 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	4.72 "	1.54 "	250 mm	9.84 "	120 mm	39.2 mm
TDK-LAMBDA RTW15-6R7C	Enclosed	-10 °C	71 °C	15 V	100 W	7 A	Chassis Mount	3000 V	1	87 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	3.23 in	0.98 in	160 mm	6.3 "	82 mm	25 mm
TDK-LAMBDA RTW15-3R5	Open Frame	-10 °C	71 °C	15 V	50 W	3.5 A	Chassis Mount	3000 V	1	85 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	3.23 in	0.87 in	124 mm	4.88 "	82 mm	22 mm
TDK-LAMBDA RTW15-3R5C	Enclosed	-10 °C	71 °C	15 V	50 W	3.5 A	Chassis Mount	3000 V	1	85 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	3.23 in	0.87 in	124 mm	4.88 "	82 mm	22 mm
TDK-LAMBDA RTW15-6R7	Open Frame	-10 °C	71 °C	15 V	100 W	7 A	Chassis Mount	3000 V	1	87 %	85 VAC	265 VAC	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE cURus TUV	ITE (Commercial)	3.23 in	24.13 mm	160 mm	6.3 "	82 mm	24.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 408.45
Newark	Each	1	$ 408.45
		10	$ 400.74

Description

General part information

RTW15 Series

Enclosed AC DC Converters 1 Output 15V 85 ~ 265 VAC Input
