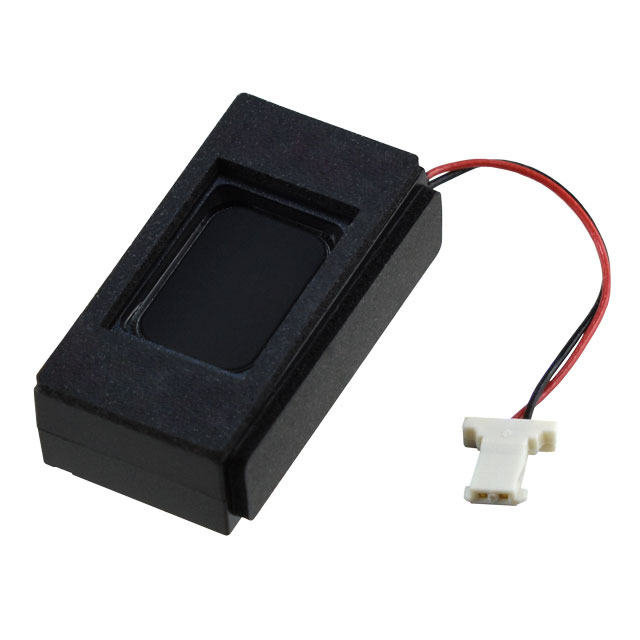

CES-26138-16L030
ActiveCUI Devices
SPEAKER 6OHM 1.2W TOP PORT 95DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CES-26138-16L030 |
|---|---|
| Distortion Rating [Max] | 10 % |
| Efficiency - dBA | 95 dBA |
| Efficiency - Testing | 1.2 W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1000 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Impedance | 6 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1.2 W |
| Shape | Rectangular |
| Size / Dimension [custom] | 26 mm |
| Size / Dimension [custom] | 13 mm |
| Size / Dimension [custom] | 0.512 in |
| Size / Dimension [custom] | 1.024 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | Enclosure Included, General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.37 | |
| 10 | $ 2.79 | |||
| 25 | $ 2.58 | |||
| 70 | $ 2.42 | |||
| 140 | $ 2.27 | |||
| 280 | $ 2.11 | |||
| 490 | $ 1.96 | |||
Description
General part information
CES-26138 Series
6 Ohms General Purpose, Enclosure Included Speaker 1.2 W 500 Hz ~ 20 kHz Top Rectangular
