H3WWH-6006G

Active

Assmann WSW Components

IDC CBL - HHPL60H/AE60G/HHPL60H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPL60H/AE60G/HHPL60H

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Color	Number of Rows	Contact Finish	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Type	Number of Positions	Length	Length	Length
Assmann WSW Components H3WWH-6018M	457.2 mm	1.5 ft	Multiple Ribbon	2	Gold	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	IDC	15 µin	0.38 µm	Flange Polarizing Key	Plug to Plug	60
Assmann WSW Components H3WWH-6006G				2	Gold	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	IDC	15 µin	0.38 µm	Flange Polarizing Key	Plug to Plug	60	152.4 mm	6 "	0.5 '
Assmann WSW Components H3WWH-6036M	914.4 mm	3 ft	Multiple Ribbon	2	Gold	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	IDC	15 µin	0.38 µm	Flange Polarizing Key	Plug to Plug	60
Assmann WSW Components H3WWH-6006M			Multiple Ribbon	2	Gold	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	IDC	15 µin	0.38 µm	Flange Polarizing Key	Plug to Plug	60	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

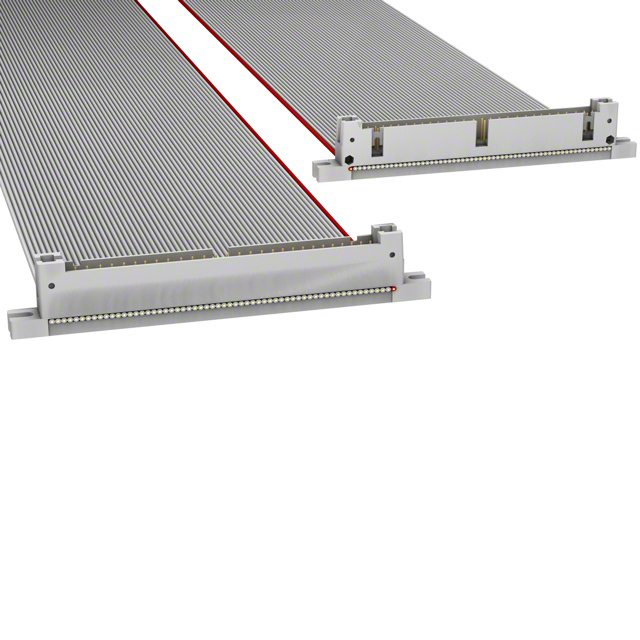

60 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
