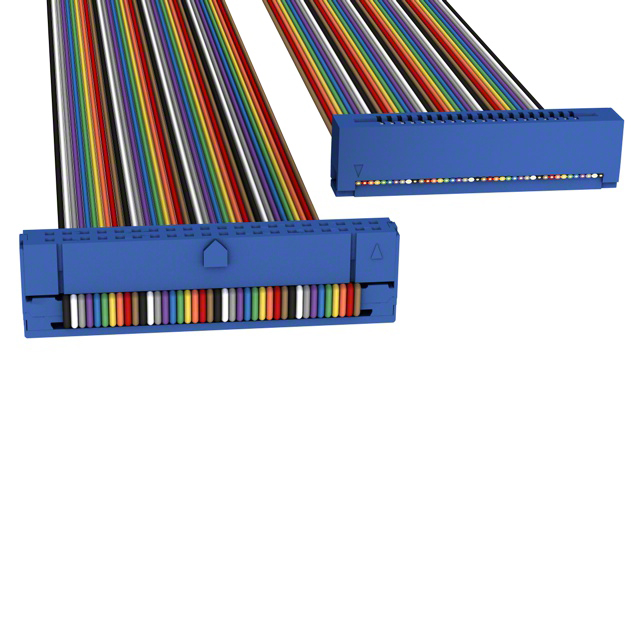

C3DEG-4006M

Active

CW Industries

IDC CABLE - CKR40G/AE40M/CCE40G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR40G/AE40M/CCE40G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DEG-4006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Number of Positions	Cable Termination	Length [x]	Length [x]	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Color	Pitch - Cable	Pitch - Cable	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length
CW Industries C3DEG-4018M	Socket to Card Edge	40	IDC	457.2 mm	1.5 ft	Unshielded	2	0.1 in	2.54 mm	Multiple Ribbon	0.05 "	1.27 mm	Polarizing Key Strain Relief	Gold	10 Áin	0.25 Ám
CW Industries C3DEG-4006G	Socket to Card Edge	40	IDC			Unshielded	2	0.1 in	2.54 mm		0.05 "	1.27 mm	Polarizing Key Strain Relief	Gold	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '
CW Industries C3DEG-4006M	Socket to Card Edge	40	IDC			Unshielded	2	0.1 in	2.54 mm	Multiple Ribbon	0.05 "	1.27 mm	Polarizing Key Strain Relief	Gold	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
