NL17SZ11MU1TCG

Active

ON Semiconductor

IC GATE AND 1CH 3-INP 6UDFN

Search across all available documentation for this part.

Active

ON Semiconductor

IC GATE AND 1CH 3-INP 6UDFN

Technical Specifications

Parameters and characteristics for this part

Specification	NL17SZ11MU1TCG

Current - Output High, Low [x]	32 mA
Current - Output High, Low [y]	32 mA
Current - Quiescent (Max) [Max]	1 çA
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

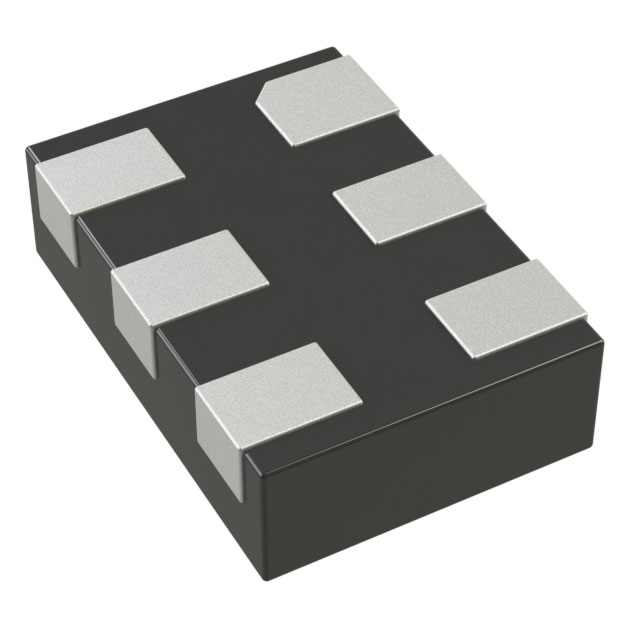

Package / Case	6-UFDFN
Supplier Device Package	6-UDFN (1.45x1)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.65 V

Part	Current - Quiescent (Max) [Max]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Number of Inputs	Mounting Type	Package / Case	Current - Output High, Low [y]	Current - Output High, Low [x]	Logic Type	Number of Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ON Semiconductor NL17SZ11MU1TCG	1 çA	7.5 ns	6-UDFN (1.45x1)	3	Surface Mount	6-UFDFN	32 mA	32 mA	AND Gate	1	5.5 V	1.65 V	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AND Gate IC 1 Channel 6-UDFN (1.45x1)
