RXG23M7
ActiveSQUARE D BY SCHNEIDER ELECTRIC

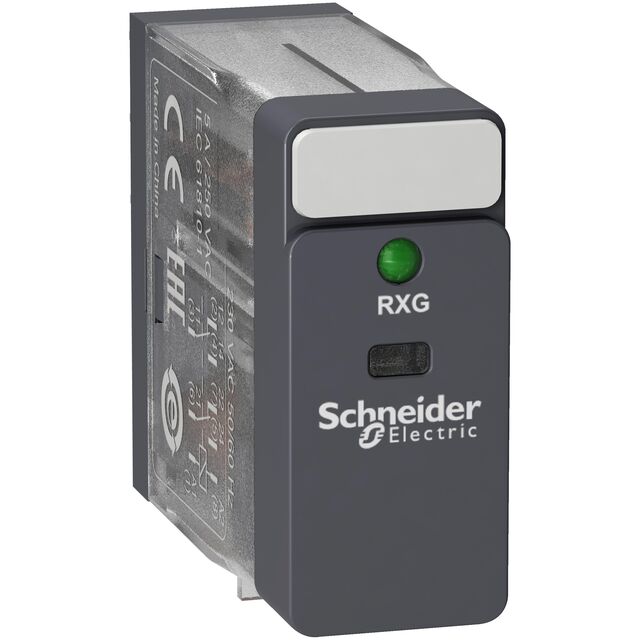

POWER RELAY, DPDT, 220 VAC, 5 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
RXG23M7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 220 VAC, 5 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RXG23M7 |
|---|---|
| Approval Agency | UL, CE, DNV-GL, EAC, CSA |
| Coil Current | 10.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 21 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 220 VAC/DC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 5 A |
| Features | Lighted Indicator |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 176 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RXG23 Series
General Purpose Relay DPDT (2 Form C) 220VAC Coil Chassis Mount
