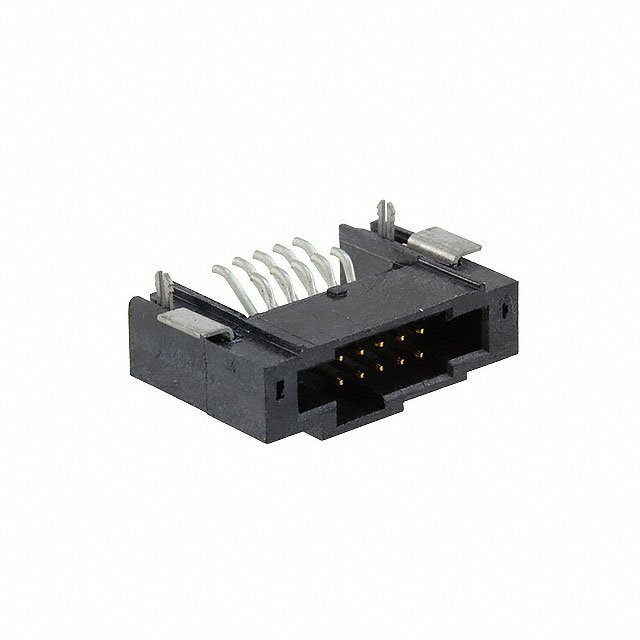

104894-1
ActiveTE Connectivity Raychem Cable Protection
10 50/50 GRID RA HDR ROHS COMPLIANT: NO
Deep-Dive with AI
DocumentsDrawing EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 104894-1 |
|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 500 mA |
| Fastening Type | Push-Pull |
| Features | Board Lock, Solder Retention |
| Insulation Color | Black |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
104894 Series
| Part | Shrouding | Mounting Type | Fastening Type | Contact Shape | Contact Material | Connector Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Insulation Height | Insulation Height [z] | Insulation Color | Current Rating (Amps) | Number of Positions | Contact Type | Number of Rows | Number of Positions Loaded | Applications | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 20 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 50 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 60 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin-Lead | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 50 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin-Lead | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 10 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 10 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Surface Mount Right Angle | Push-Pull | Circular | Brass | Header | Tin-Lead | -65 ░C | 105 ░C | Solder | 0.05 in | 1.27 mm | UL94 V-0 | 5.4 mm | 0.213 in | Black | 500 mA | 70 | Male Pin | 2 | All | Automotive General Purpose Medical Military Telecommunications | Gold | 0.05 in | 1.27 mm | 150 Áin | 3.81 Ám | Liquid Crystal Polymer (LCP) | Board Lock Solder Retention | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
104894 Series
Connector Header Surface Mount, Right Angle 10 position 0.050" (1.27mm)
