11072M-03-2-1-1

Active

CnC Tech, LLC

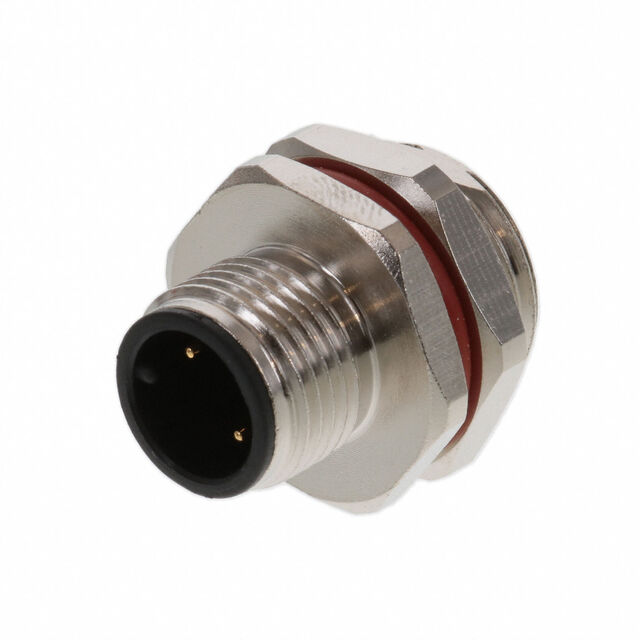

CONN RCPT MALE 3POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11072M-03-2-1-1

Active

CnC Tech, LLC

CONN RCPT MALE 3POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11072M-03-2-1-1

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M12-3
Shielding	Unshielded
Voltage Rating	60 VDC

11072M Series

Part	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Shell Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Primary Material	Shell Finish	Shell Size - Insert	Shielding	Color	Mounting Feature	Connector Type	Contact Material	Voltage Rating	Number of Positions
CnC Tech, LLC 11072M-05-2-1-4	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	D	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-5	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC
CnC Tech, LLC 11072M-05-2-1-1	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	A	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-5	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC
CnC Tech, LLC 11072M-04-2-1-4	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	D	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-4	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC	4
CnC Tech, LLC 11072M-03-2-1-4	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	D	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-3	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC
CnC Tech, LLC 11072M-04-2-1-1	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	A	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-4	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC	4
CnC Tech, LLC 11072M-03-2-1-1	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	5 A	Gold	Copper Alloy	A	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-3	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC
CnC Tech, LLC 11072M-12-2-1-1	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	1.5 A	Gold	Copper Alloy	A	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-12	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	30 VDC	12
CnC Tech, LLC 11072M-08-2-1-1	Polyamide (PA66) Nylon 6/6	3 µin	0.076 µm	UL94 V-0	2 A	Gold	Copper Alloy	A	100 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Nickel	M12-8	Unshielded	Silver	Bulkhead - Front Side Nut	Male Pins Receptacle	Copper Alloy	60 VDC	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.15
		10	$ 7.33
		25	$ 6.91
		54	$ 6.73
		108	$ 6.55
		270	$ 6.24

Description

General part information

11072M Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup
