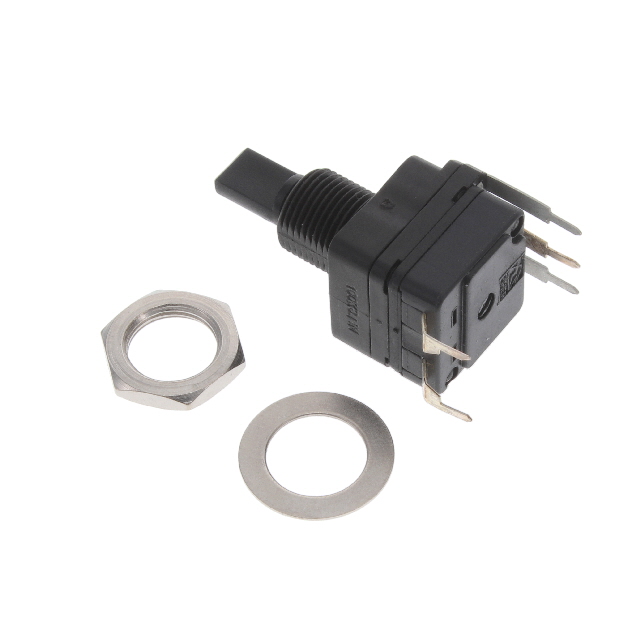

PC16SV-10IP18-104A2020-I-TA

Active

Amphenol Piher Sensing Systems

POT 100K OHM 1/5W CARBON LINEAR

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

POT 100K OHM 1/5W CARBON LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length	Actuator Length [z]	Number of Gangs	Number of Turns	Resistive Material	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Tolerance	Temperature Coefficient	Taper	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Adjustment Type	Termination Style	Power (Watts)	Power (Watts)	Bushing Thread	Bushing Thread	Actuator Type	Rotation	Resistance (Ohms)	Actuator Length [z]	Actuator Length [x]	Built in Switch
Amphenol Piher Sensing Systems PC16SV-07IP17-503A2020-TA	19 mm	0.748 in	1	1	Carbon	50 kOhms	0.236 in	6 mm	20 %	300 ppm/°C	Linear	18 mm	0.63 in	16 mm	0.709 "	Top Adjustment	PC Pins	0.2 W	1/5	0.75	M7	Knurled	300 ░
Amphenol Piher Sensing Systems PC16SV-10IP12-103A2020-TA		0.846 in	1	1	Carbon		0.236 in	6 mm	20 %	300 ppm/°C	Linear	18 mm	0.63 in	16 mm	0.709 "	Top Adjustment	PC Pins	0.2 W	1/5		M10 x 0.75	Flatted	300 ░	10k	21.5 mm
Amphenol Piher Sensing Systems PC16SV-10IP05-502A2020-TA		1.398 in	1	1	Carbon	5 kOhms	0.236 in	6 mm	20 %	300 ppm/°C	Linear	18 mm	0.63 in	16 mm	0.709 "	Top Adjustment	PC Pins	0.2 W	1/5		M10 x 0.75	Knurled	300 ░		35.5 mm
Amphenol Piher Sensing Systems PC16SV-10IP18-104A2020-I-TA	18.5 mm		1	1	Carbon	100 kOhms	0.236 in	6 mm	20 %	300 ppm/°C	Linear	18 mm	0.63 in	16 mm	0.709 "	Top Adjustment	PC Pins	0.2 W	1/5		M10 x 0.75	Flatted	300 ░			0.728 in	Rotary SPST
Amphenol Piher Sensing Systems PC16SV-10IP06-255A2020-TA			1	1	Carbon		0.236 in	6 mm	20 %	300 ppm/°C	Linear	18 mm	0.63 in	16 mm	0.709 "	Top Adjustment	PC Pins	0.2 W	1/5		M10 x 0.75	Knurled	300 ░	2.5M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W PC Pins
