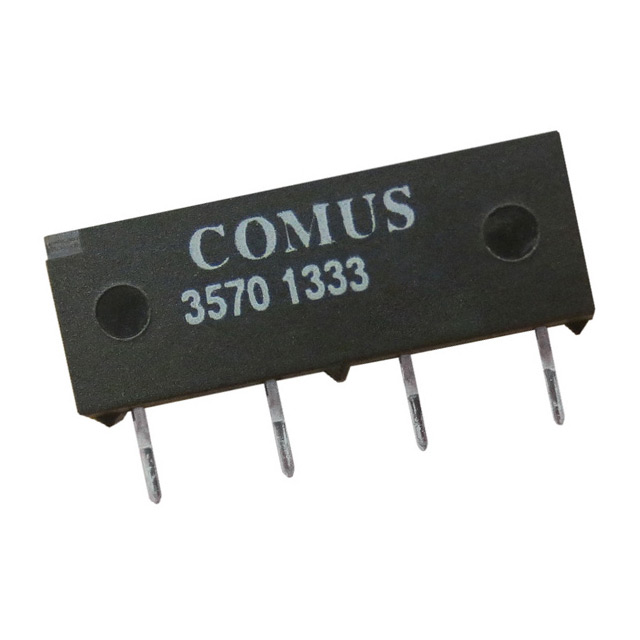

3570-1333-121
ActiveComus International
RELAY REED SIP SPST .5A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3570-1333-121 |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 1 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 0.35 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 500 | $ 1.67 | |
Description
General part information
3570-1333 Series
RELAY REED SIP SPST .5A 12V
