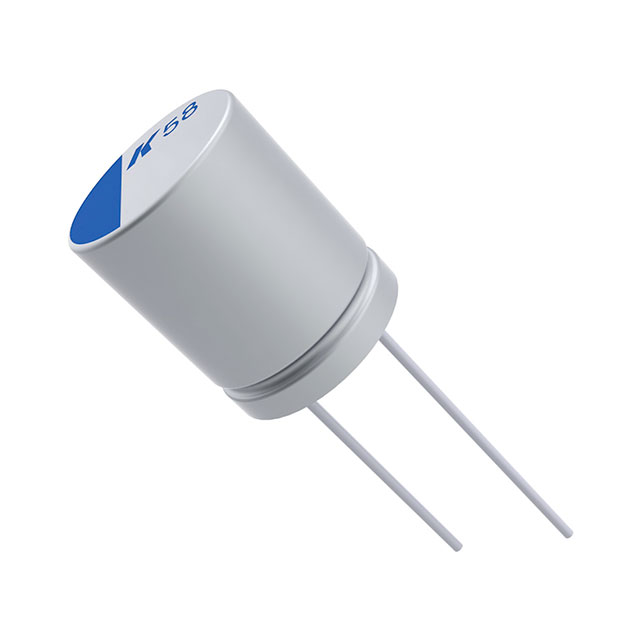

A758KR477M1AAAE011

Active

KEMET

CAP, 470UF, 10V, ALU ELE RADIAL, POLYMER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, 470UF, 10V, ALU ELE RADIAL, POLYMER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	A758KR477M1AAAE011

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	11 mOhm
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	5.1 A
Ripple Current @ Low Frequency	255 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

Part	Tolerance	Type	Applications	Ripple Current @ High Frequency	Capacitance	Lifetime @ Temp.	Package / Case	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency
KEMET A758KR687M1AAAE008	20 %	Polymer	General Purpose	5.65 A	680 µF	5000 Hrs	Radial Can	10 V	Through Hole	0.315 "	8 mm	105 ░C	-55 °C	13 mm	0.512 "	3.5 mm	0.138 in	8 mOhms	282.5 mA
KEMET A758KR477M1AAAE011	20 %	Polymer	General Purpose	5.1 A	470 µF	5000 Hrs	Radial Can	10 V	Through Hole	0.315 "	8 mm	105 ░C	-55 °C	13 mm	0.512 "	3.5 mm	0.138 in	11 mOhm	255 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF 10 V Aluminum - Polymer Capacitors Radial, Can 11mOhm 5000 Hrs @ 105°C
