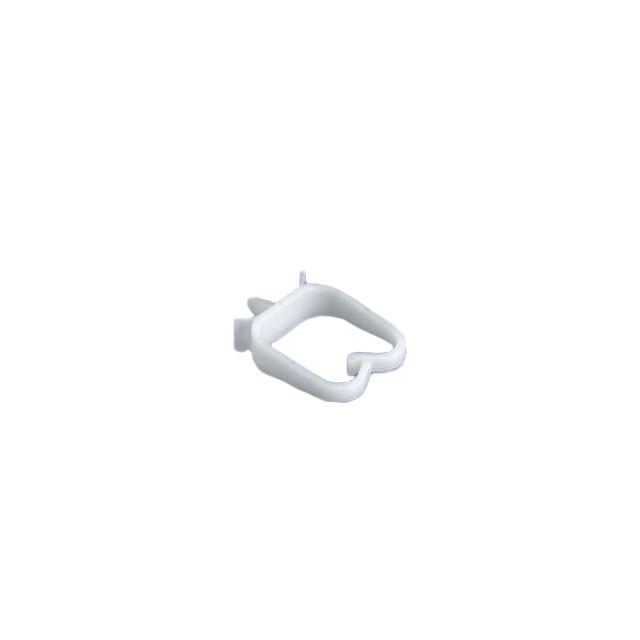

VWS106-C

Active

Panduit Corp

FASTENER, FIBRE OPTIC NETWORK SADDLE, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Search across all available documentation for this part.

Active

Panduit Corp

FASTENER, FIBRE OPTIC NETWORK SADDLE, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	VWS106-C

Color	Natural
Height [z]	33.02 mm
Height [z]	33.02 mm
Length	29.97 mm
Length	1.18 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [z]	26.92 mm
Opening Size [z]	1.06 in
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness	0.09 in
Panel Thickness	2.29 mm
Type	Clip, Wire Saddle
Width	8.64 mm
Width	0.34 in

Part	Opening Size [z]	Opening Size [z]	Material Flammability Rating	Height [z]	Height [z]	Length	Length	Color	Mounting Type	Panel Hole Size	Panel Hole Size	Width	Width	Material	Type	Panel Thickness	Panel Thickness
Panduit Corp VWS106-C	26.92 mm	1.06 in	UL94 V-2	33.02 mm	33.02 mm	29.97 mm	1.18 in	Natural	Arrowhead Winged	4.75 mm	0.187 in	8.64 mm	0.34 in	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	0.09 in	2.29 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 1.060" (26.92mm)
