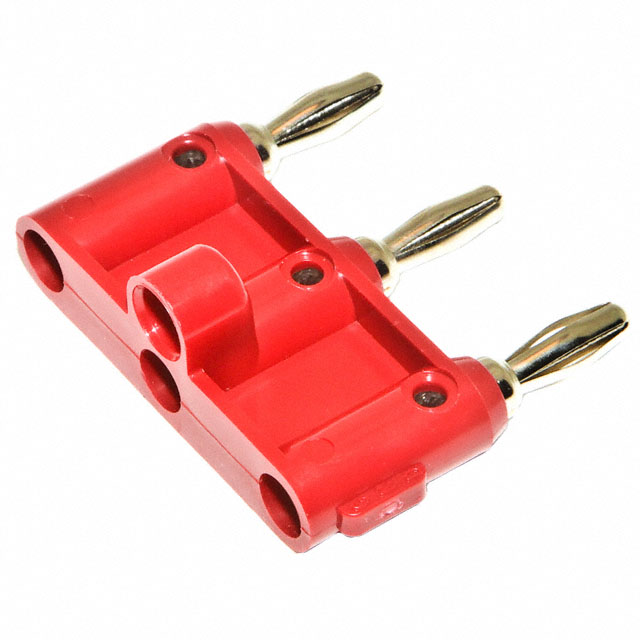

BU-P2970-2

Active

Mueller Electric Co

BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 1 KV, NICKEL PLATED CONTACTS, RED

Search across all available documentation for this part.

Active

Mueller Electric Co

BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 1 KV, NICKEL PLATED CONTACTS, RED

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P2970-2

Body Material	Polypropylene (PP)
Color	Red
Contact Finish	Nickel
Contact Material	Brass
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Stackable, Banana Plug, Triple

Part	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Gender	Insulation	Plug/Mating Plug Diameter	Type	Contact Finish	Body Material
Mueller Electric Co BU-P2970-2	Red	Brass	-50 °C	115 °C	Free Hanging (In-Line)	Solderless	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable Triple	Nickel	Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Plug, Triple, Stackable Connector Standard Banana Solderless Red
