KTPS65-1934DT-3P-VI-C-P1

Active

Volgen + Furuno

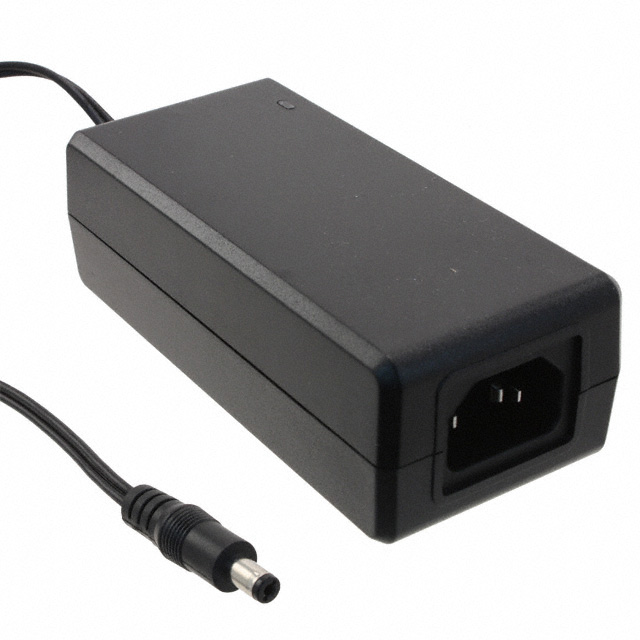

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS65-1934DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS65-1934DT-3P-VI-C-P1

Applications	ITE (Commercial)
Approval Agency	cUL, PSE, CE, GS, UL, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.4 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	19 V
Weight	310.26 g
Weight	0.684 lb

KTPS65 Series

Part	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Approval Agency	Input Type	Form	Cord Length	Cord Length	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Weight	Weight	Applications	Standard Number
Volgen + Furuno KTPS65-4813DT-3P-VI-C-P1	1.36 A	65 W	International	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	40 °C	264 VAC	100 VAC	48 V	CB CE cUL GS PSE UL	Cord	Desktop (Class I)	1.5 m	59 in	Positive Center	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	310.26 g	0.684 lb	ITE (Commercial)
Volgen + Furuno KTPS65-1250DT-3P-VI-C-P1	5 A	65 W	International	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	40 °C	240 VAC	100 VAC	12 V	IEC	Cord	Desktop (Class I)	1.5 m	59 in	Positive Center	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14			ITE (Commercial)	60950-1
Volgen + Furuno KTPS65-1543DT-3P-VI-C-P1	4.3 A	65 W	International	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	40 °C	240 VAC	100 VAC	15 VDC	IEC	Cord	Desktop (Class I)	1.5 m	59 in	Positive Center	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14			ITE (Commercial)	60950-1
Volgen + Furuno KTPS65-1934DT-3P-VI-C-P1	3.4 A	65 W	International	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	40 °C	264 VAC	100 VAC	19 V	CB CE cUL GS PSE UL	Cord	Desktop (Class I)	1.5 m	59 in	Positive Center	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	310.26 g	0.684 lb	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 23.12

Description

General part information

KTPS65 Series

19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

No documents available
