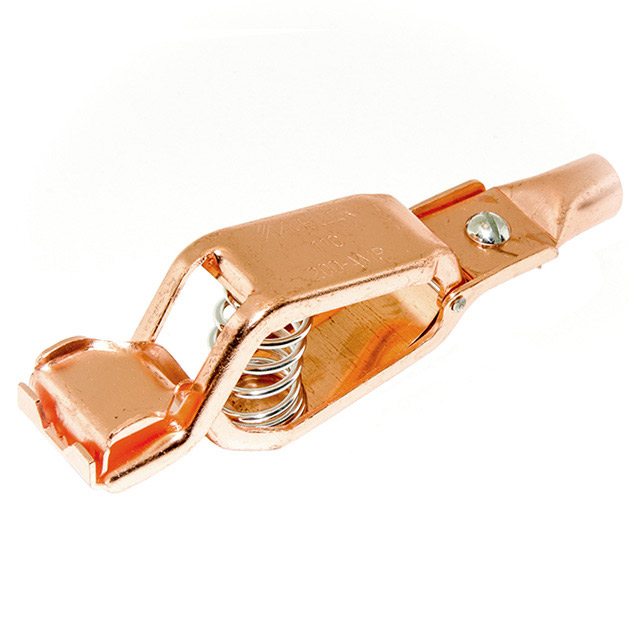

BU-11CPN

Active

Mueller Electric Co

HD CLIP COPPER NON-INSUL 200A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet +1

BU-11CPN

Active

Mueller Electric Co

HD CLIP COPPER NON-INSUL 200A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-11CPN

Color	Natural
Current Rating (Amps)	200 A
Insulation	Non-Insulated
Jaw Opening	1.625 in
Jaw Opening	41.28 mm
Jaw Opening
Length	152.4 mm
Length	6 in
Material	Copper
Quantity	1 Box
Ratings	AA59466-011
Termination	Lug
Type	Heavy Duty

BU-11 Series

Part	Material	Current Rating (Amps)	Type	Jaw Opening	Jaw Opening	Insulation	Color	Length	Length	Quantity	Termination	Plating	Ratings
Mueller Electric Co BU-11CPS	Copper	200 A	Heavy Duty	1.625 in	41.28 mm	Non-Insulated	Natural	152.4 mm	6 in	1 Box	Lug
Mueller Electric Co BU-11APN		100 A	Heavy Duty	1.625 in	41.28 mm	Non-Insulated	Natural	152.4 mm	6 in	1 Box	Lug	Zinc
Mueller Electric Co BU-11CPN	Copper	200 A	Heavy Duty	1.625 in	41.28 mm	Non-Insulated	Natural	152.4 mm	6 in	1 Box	Lug		AA59466-011
Mueller Electric Co BU-11XPN	Stainless Steel	100 A	Heavy Duty	1.7 in	43.18 mm	Non-Insulated		127 mm	5 in	1 Box	Lug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.84
		10	$ 17.81
		100	$ 16.98
		500	$ 16.42
Newark	Each	1	$ 24.99
		100	$ 23.24
		500	$ 21.75
		1000	$ 20.00
		2500	$ 18.25

Description

General part information

BU-11 Series

The BU-11CPN is a 200A heavy duty grounding Clip with solid copper construction, steel spring. Can be used with up to 0AWG wire or welding cable. Uses BU-13 Series PVC Insulators.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

BU-60 Series Datasheet

Datasheet
