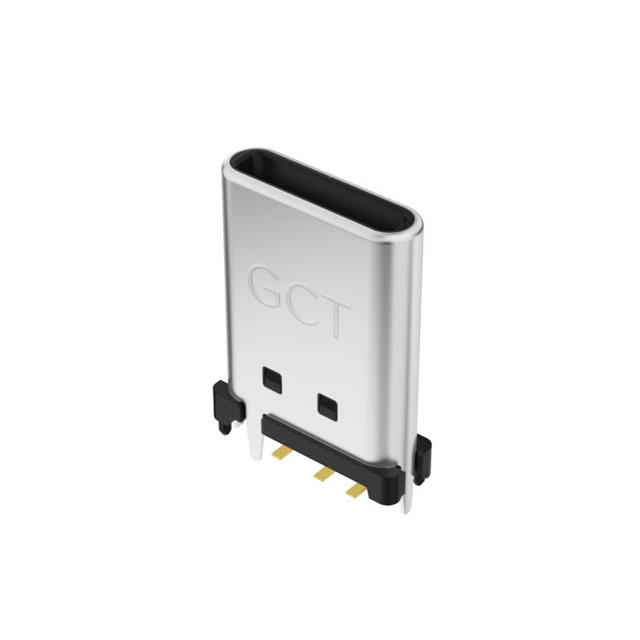

USB4180-03-0120-C
ActiveGCT
USB-C PLUG, 6 PIN VERT H= 11MM S
Deep-Dive with AI
Search across all available documentation for this part.
USB4180-03-0120-C
ActiveGCT
USB-C PLUG, 6 PIN VERT H= 11MM S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4180-03-0120-C |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Features | No Data, Power Only |
| Gender | Plug |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 6, 18 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.75 | |||
| Tape & Reel (TR) | 400 | $ 0.73 | ||
| 800 | $ 0.63 | |||
| 1200 | $ 0.58 | |||
| 2000 | $ 0.54 | |||
| 2800 | $ 0.53 | |||
| 10000 | $ 0.48 | |||
| 20000 | $ 0.47 | |||
Description
General part information
USB4180 Series
USB-C (USB TYPE-C) Plug Connector 24 (6+18 Dummy) Position Surface Mount, Through Hole
