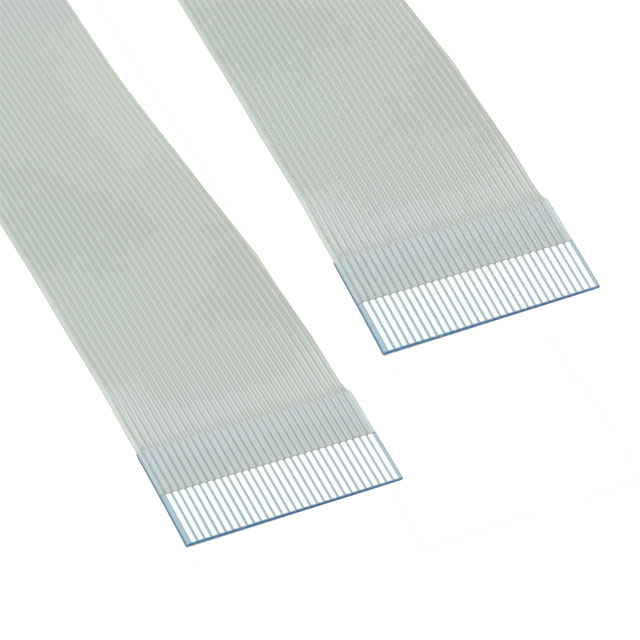

0151660331

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 9"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 9"

Technical Specifications

Parameters and characteristics for this part

Specification	0151660331

Cable Type	FPC, FFC
Length	9 "
Length	228.6 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	30
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Pitch [x]	Pitch [x]	Number of Conductors	Cable Type	Length	Length	Length [x]
Molex 0151660331	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	30	FFC FPC	9 "	228.6 mm
Molex 0151660195	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	18	FFC FPC	7 in	177.8 mm
Molex 0151661015	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	31	FFC FPC	4 in	101.6 mm
Molex 0151660285	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	26	FFC FPC	8 in	203.2 mm
Molex 0151661099	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	39	FFC FPC	2 in	50.8 mm
Molex 0151661116	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	39	FFC FPC		304.8 mm	12 in
Molex 0151660756	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	7	FFC FPC	7 in	177.8 mm
Molex 0151660096	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	10	FFC FPC	1.18 in	29.97 mm
Molex 0151660448
Molex 0151661022	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	31	FFC FPC	8 in	203.2 mm
