C0561A.41.10
ActivePrysmian Group

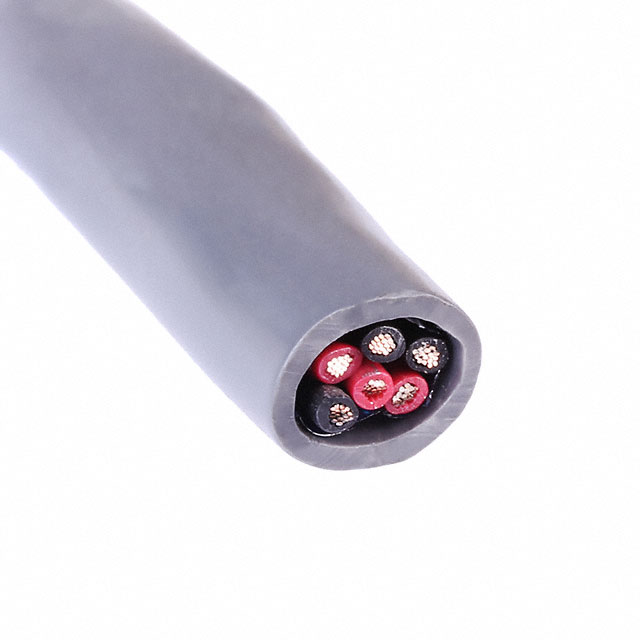

MULTI-PAIR 6CON 18AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
C0561A.41.10
ActivePrysmian Group
MULTI-PAIR 6CON 18AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0561A.41.10 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 10.24 mm |
| Jacket (Insulation) Diameter [diameter] | 0.403 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.067 mm |
| Jacket (Insulation) Thickness | 0.042 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 500 ', 100 ft, 50 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Tinned, Flexfoil®, Copper |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 351.15 | |
| 1 | $ 989.19 | |||
| 1 | $ 177.12 | |||
| 5 | $ 287.30 | |||
| 5 | $ 144.92 | |||
| 5 | $ 927.37 | |||
| 10 | $ 223.46 | |||
| 10 | $ 865.54 | |||
| 10 | $ 112.72 | |||
| 1000 | $ 1.72 | |||
| 3000 | $ 1.61 | |||
| 5000 | $ 1.53 | |||
Description
General part information
C0561 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil 1000.0' (304.8m)
