ASMW-LH00-AUW0E
ObsoleteBroadcom Limited

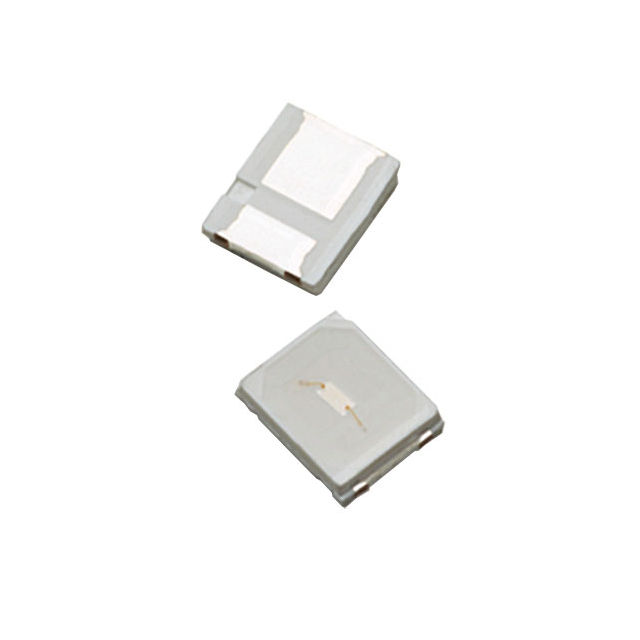

LED RED-ORANGE 2835 SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMW-LH00-AUW0E
ObsoleteBroadcom Limited
LED RED-ORANGE 2835 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMW-LH00-AUW0E |
|---|---|
| Color | Red-Orange |
| Configuration | Standard |
| Current - Test | 150 mA |
| Height (Max) [Max] | 0.9 mm |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 3.4 mm |
| Supplier Device Package | 2835 |
| Viewing Angle | 120 ° |
| Wavelength - Dominant | 613 nm |
| Wavelength - Peak | 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASMW-LH00 Series
Red-Orange 613nm LED Indication - Discrete 1411 (3528 Metric)
Documents
Technical documentation and resources
No documents available
