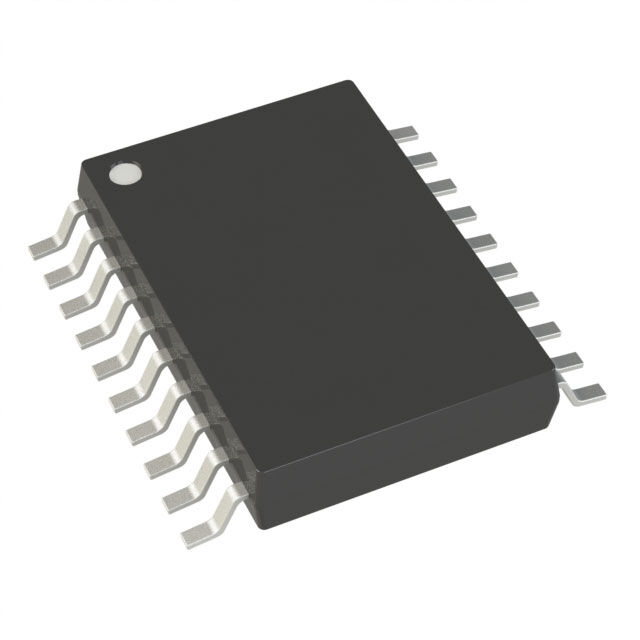

SA8027DH,518
ObsoleteFreescale Semiconductor - NXP
IC FRACT N SYNTH 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA8027DH,518
ObsoleteFreescale Semiconductor - NXP
IC FRACT N SYNTH 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA8027DH,518 |
|---|---|
| Differential - Input:Output | Yes/No |
| Divider/Multiplier | Yes/No |
| Frequency - Max [Max] | 2.5 GHz |
| Input | Clock |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clock |
| Package / Case | 20-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| PLL | True |
| Ratio - Input:Output [custom] | 2:3 |
| Supplier Device Package | 20-TSSOP |
| Type | Fractional N Synthesizer |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SA802 Series
Fractional N Synthesizer IC 2.5GHz 1 20-TSSOP (0.173", 4.40mm Width)
