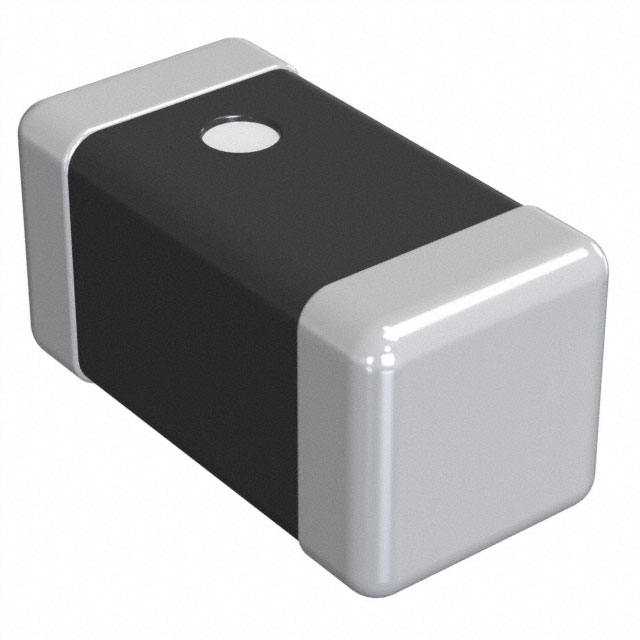

DFE18SANR47MG0L
NRNDMurata Power Solutions Inc.
FIXED IND 470NH 2.6A 54 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFE18SANR47MG0L
NRNDMurata Power Solutions Inc.
FIXED IND 470NH 2.6A 54 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE18SANR47MG0L |
|---|---|
| Current - Saturation (Isat) | 3.6 A |
| Current Rating (Amps) | 2.6 A |
| DC Resistance (DCR) [Max] | 54 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Supplier Device Package | 1608 Metric |
| Supplier Device Package | 0603 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.16 | |||
| 9000 | $ 0.15 | |||
| 15000 | $ 0.15 | |||
| 21000 | $ 0.14 | |||
| 30000 | $ 0.14 | |||
Description
General part information
DFE18SAN Series
470 nH Shielded Inductor 2.6 A 54mOhm Max 0603 (1608 Metric)
