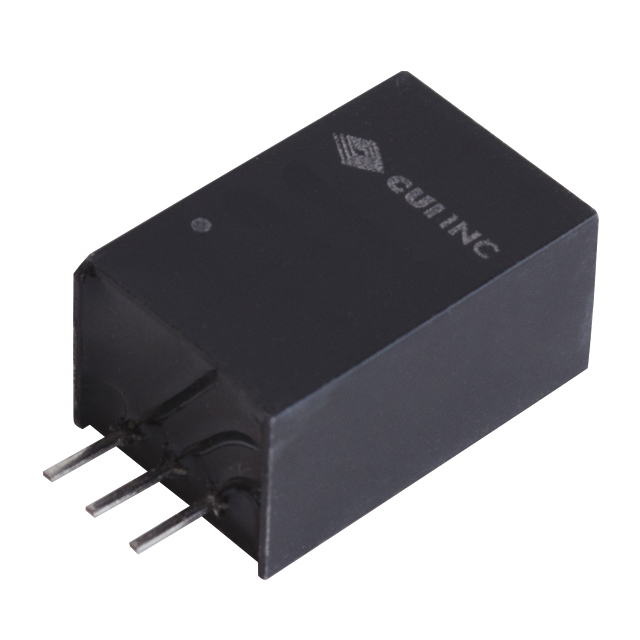

V7812-1000

Obsolete

CUI Inc.

DC DC CONVERTER 12V 12W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	V7812-1000

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	95 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	12 W
Size / Dimension [x]	0.45 in
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.5 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	16 V
Voltage - Output 1	12 V

Part	Type	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Features	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications
CUI Inc. V7812-500	Linear Regulator Replacement	3-SIP Module	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	12 V	1	Through Hole	85 °C	-40 °C	32 V	6 W	OTP SCP	95 %	500 mA	15 V	ITE (Commercial)
CUI Inc. V7812W-500	Linear Regulator Replacement	3-SIP Module	11.5 mm	0.69 "	0.45 in	0.35 "	17.5 mm	9 mm	12 V	1	Through Hole	85 °C	-40 °C	72 V	6 W	OTP SCP	93 %	500 mA	17 V	ITE (Commercial)
CUI Inc. V7812-1000	Linear Regulator Replacement	3-SIP Module	11.5 mm	0.69 "	0.45 in	0.35 "	17.5 mm	9 mm	12 V	1	Through Hole	85 °C	-40 °C	32 V	12 W	OTP SCP	95 %	1 A	16 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Regulator Replacement DC DC Converter 1 Output 12V 1A 16V - 32V Input
