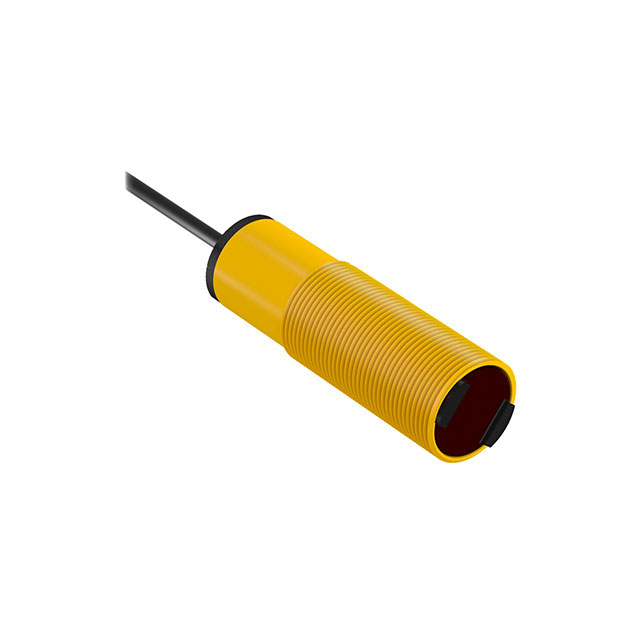

S18SN6FF50
ActiveBANNER ENGINEERING
EZ-BEAM S18 SERIES: FIXED FIELD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S18SN6FF50
ActiveBANNER ENGINEERING
EZ-BEAM S18 SERIES: FIXED FIELD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S18SN6FF50 |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IEC IP69K, IEC IP67, NEMA 6P |
| Light Source | Infrared |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN - Dark-ON/Light-ON |
| Response Time | 3 ms |
| Sensing Distance | 50 mm |
| Sensing Distance | 1.969 in |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
S18SN6 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Sensing Distance | Sensing Method | Response Time | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | -40 °C | 70 °C | 3.937 in | 100 mm | Background Suppression | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared LED | Connector | IEC IP69K NEMA 6P | ||
BANNER ENGINEERING | -40 °C | 70 °C | 11.811 in | 300 mm | Diffuse | 3 ms | 30 VDC | 10 VDC | Infrared | Cable | IEC IP67 IEC IP69K NEMA 6P | 354.33 in | 9 m | |
BANNER ENGINEERING | -40 °C | 70 °C | 3.937 in | 100 mm | Diffuse | 3 ms | 30 VDC | 10 VDC | NPN - Light-ON | LED | Cable | IEC IP67 IEC IP69K NEMA 6P | 78.74 in | 2 m |
BANNER ENGINEERING | -40 °C | 70 °C | 787.402 in | 20 m | Through-Beam | 3 ms | 30 VDC | 10 VDC | Infrared (950nm) | Cable | IEC IP67 IEC IP69K NEMA 6P | 354.33 in | 9 m | |
BANNER ENGINEERING | -40 °C | 70 °C | 3.937 in | 100 mm | Diffuse | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared | Cable | IEC IP67 IEC IP69K NEMA 6P | 78.74 in | 2 m |
BANNER ENGINEERING | -40 °C | 70 °C | 11.811 in | 300 mm | Diffuse | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared | Cable | IEC IP67 IEC IP69K NEMA 6P | 78.74 in | 2 m |
BANNER ENGINEERING | -40 °C | 70 °C | 787.402 in | 20 m | Through-Beam | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared LED | Connector | IEC IP69K NEMA 6P | ||
BANNER ENGINEERING | -40 °C | 70 °C | 3.937 in | 100 mm | Diffuse | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared LED | Connector | IEC IP69K NEMA 6P | ||
BANNER ENGINEERING | -40 °C | 70 °C | 1.969 in | 50 mm | Background Suppression | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared | Cable | IEC IP67 IEC IP69K NEMA 6P | 78.74 in | 2 m |
BANNER ENGINEERING | -40 °C | 70 °C | 78.74 " | 2 m | NonPolarized Retroreflective | 3 ms | 30 VDC | 10 VDC | NPN - Dark-ON/Light-ON | Infrared (950nm) | Cable | IEC IP67 IEC IP69K NEMA 6P | 78.74 in | 2 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18SN6 Series
Background Suppression Optical Sensor 1.969" (50mm) NPN - Dark-ON/Light-ON
