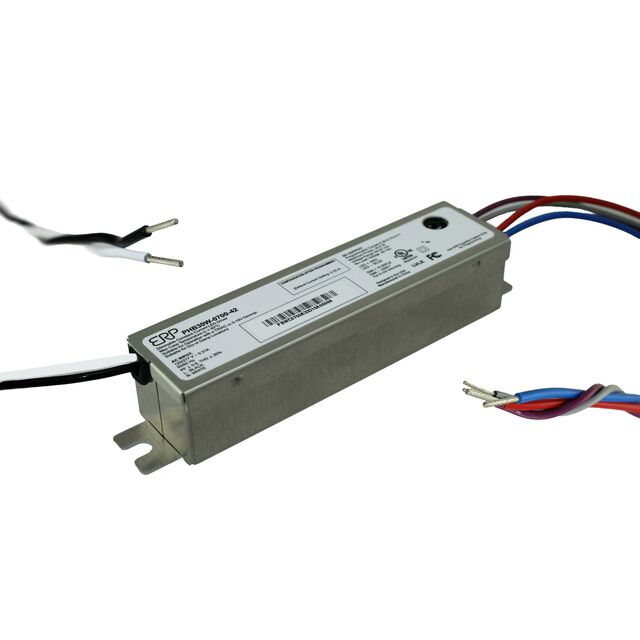

PHB30W-0700-42
ActiveERP Power, LLC
PROGRAMMABLE CC LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHB30W-0700-42
ActiveERP Power, LLC
PROGRAMMABLE CC LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PHB30W-0700-42 |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | ELV, Analog, TRIAC |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | 194 °F |
| Power (Watts) | 29 W |
| Ratings | IP20 |
| Size / Dimension [x] | 103.4 mm |
| Size / Dimension [x] | 4.07 in |
| Size / Dimension [y] | 1.03 in |
| Size / Dimension [y] | 26.2 mm |
| Size / Dimension [z] | 23.9 mm |
| Size / Dimension [z] | 0.94 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.46 | |
| 5 | $ 21.28 | |||
| 10 | $ 20.81 | |||
Description
General part information
PHB30W Series
700mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
