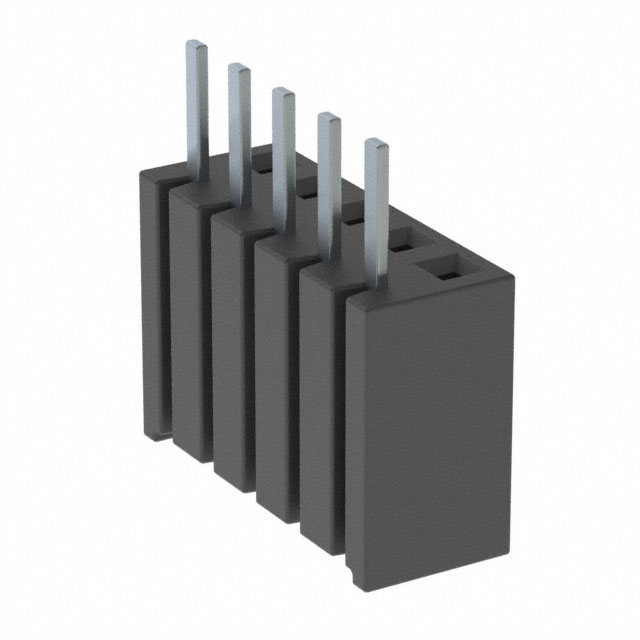

BSW-105-04-T-S - BSW-105-04-T-S

BSW-105-04-T-S

Active
Samtec Inc.

CONN RCPT 5POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBSW Datasheet+1
BSW-105-04-T-S - BSW-105-04-T-S

BSW-105-04-T-S

Active
Samtec Inc.

CONN RCPT 5POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheetBSW Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationBSW-105-04-T-S
Connector TypeBreakaway, Receptacle
Contact Finish - PostTin
Contact Length - Post4.32 mm
Contact Length - Post0.17 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height [custom]0.35 in
Insulation Height [custom]8.89 mm
Insulation MaterialPolyethylene Terephthalate (PET), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Bottom Mount
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
TerminationSolder

BSW-105 Series

PartContact TypeConnector TypeOperating Temperature [Max]Operating Temperature [Min]Contact MaterialContact Length - Post [x]Contact Length - Post [x]Contact Finish - PostPitch - MatingPitch - MatingInsulation MaterialTerminationRow Spacing - Mating [x]Row Spacing - Mating [x]Number of Positions LoadedFastening TypeNumber of RowsInsulation ColorMounting TypeContact ShapeMaterial Flammability RatingInsulation Height [custom]Insulation Height [custom]Number of PositionsContact Finish Thickness - MatingContact Finish Thickness - MatingContact Finish - MatingContact Length - PostContact Length - Post
Samtec Inc.
BSW-105-04-T-D
Female Socket
Breakaway
Receptacle
105 ░C
-55 °C
Phosphor Bronze
0.165 in
4.19 mm
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
2.54 mm
0.1 in
All
Push-Pull
2
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
10
Samtec Inc.
BSW-105-24-S-D
Female Socket
Breakaway
Receptacle
125 °C
-55 °C
Phosphor Bronze
0.165 in
4.19 mm
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
2.54 mm
0.1 in
All
Push-Pull
2
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
10
30 Áin
0.76 Ám
Gold
Samtec Inc.
BSW-105-04-L-S
Female Socket
Breakaway
Receptacle
125 °C
-55 °C
Phosphor Bronze
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
All
Push-Pull
1
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
10 çin
0.25 çm
Gold
4.32 mm
0.17 in
Samtec Inc.
BSW-105-04-G-D
Female Socket
Breakaway
Receptacle
125 °C
-55 °C
Phosphor Bronze
0.165 in
4.19 mm
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
2.54 mm
0.1 in
All
Push-Pull
2
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
10
20 µin
0.51 µm
Gold
Samtec Inc.
BSW-105-04-S-S-S
Female Socket
Receptacle
125 °C
-55 °C
Phosphor Bronze
0.15 in
3.81 mm
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
All
Push-Pull
1
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
30 Áin
0.76 Ám
Gold
Samtec Inc.
BSW-105-04-T-S
Female Socket
Breakaway
Receptacle
105 ░C
-55 °C
Phosphor Bronze
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
All
Push-Pull
1
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
4.32 mm
0.17 in
Samtec Inc.
BSW-105-04-G-S
Female Socket
Receptacle
125 °C
-55 °C
Phosphor Bronze
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
All
Push-Pull
1
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
20 µin
0.51 µm
Gold
4.32 mm
0.17 in
Samtec Inc.
BSW-105-24-G-D
Female Socket
Breakaway
Receptacle
125 °C
-55 °C
Phosphor Bronze
0.165 in
4.19 mm
Tin
0.1 in
2.54 mm
Polyethylene Terephthalate (PET)
Glass Filled
Solder
2.54 mm
0.1 in
All
Push-Pull
2
Black
Bottom Mount
Through Hole
Square
UL94 V-0
0.35 in
8.89 mm
10
20 µin
0.51 µm
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.00

Description

General part information

BSW-105 Series

5 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Bottom Mount Tin
