EDAC Inc.

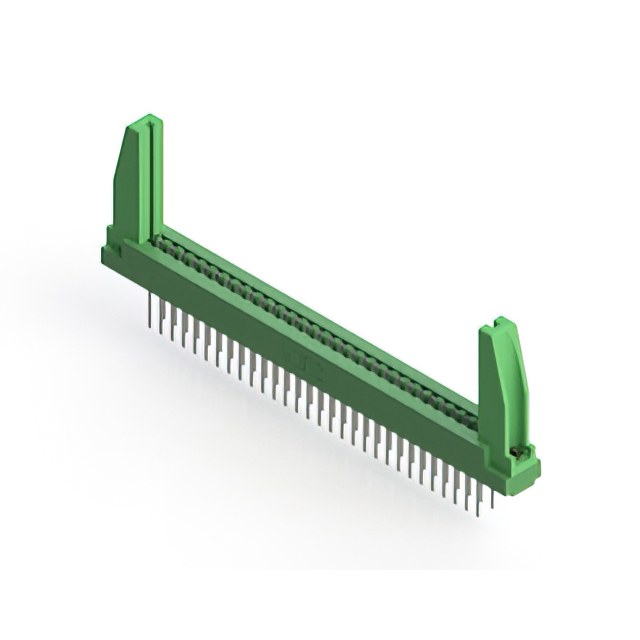

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

307-060-442-278

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-060-442-278

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

307-060 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Number of Positions	Number of Rows	Termination Rows	Pitch [x]	Pitch [x]	Contact Type	Card Type	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Read Out	Material - Insulation	Contact Finish	Number of Positions/Bay/Row [custom]	Termination	Features
EDAC Inc. 307-060-542-202	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	Dual	Polyester Thermoplastic	Gold	30	Wire Wrap
EDAC Inc. 307-060-422-212	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Solder
EDAC Inc. 307-060-520-202	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	Dual	Polyester Thermoplastic	Gold	30	Solder
EDAC Inc. 307-060-420-207	1.37 mm	0.054 "	1.78 mm	0.07 in			Flush Mount M3 Threaded Insert Top Opening	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Solder
EDAC Inc. 307-060-424-207	1.37 mm	0.054 "	1.78 mm	0.07 in			Flush Mount M3 Threaded Insert Top Opening	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Solder
EDAC Inc. 307-060-420-201	1.37 mm	0.054 "	1.78 mm	0.07 in				Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Solder
EDAC Inc. 307-060-520-268	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	Dual	Polyester Thermoplastic	Gold	30	Solder	Card Guides
EDAC Inc. 307-060-556-202	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Board Edge Straddle Mount	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	Dual	Polyester Thermoplastic	Gold	30	Solder	Card Extender
EDAC Inc. 307-060-424-278	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Solder	Card Guides
EDAC Inc. 307-060-442-278	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Female	60	2	2	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	Green	Through Hole	-40 °C	105 ░C			Copper Alloy	Dual	Polyester Thermoplastic	Tin	30	Wire Wrap	Card Guides
