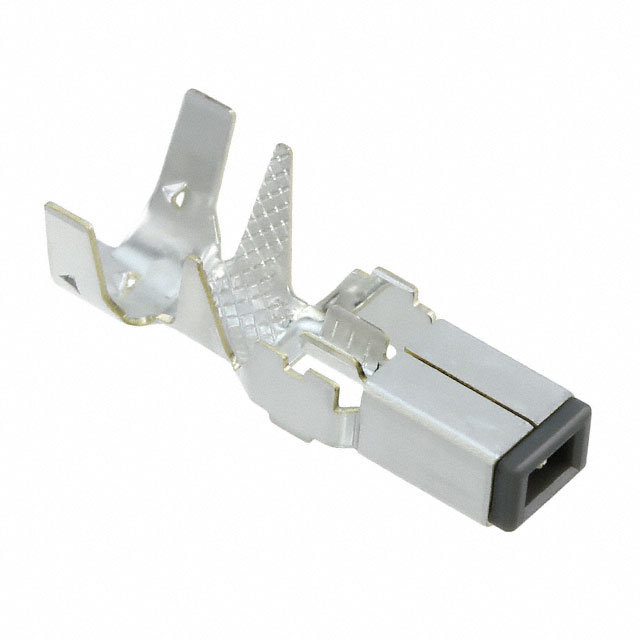

GT13-2428/F4-5PCF(70)

Active

Hirose Electric USA, Inc.

SHIELDED COAXIAL CABLES CONNECTORS USING TWIN CRIMP TECHNOLOGY

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

SHIELDED COAXIAL CABLES CONNECTORS USING TWIN CRIMP TECHNOLOGY

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Type	Contact Termination	Pin or Socket	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish
Hirose Electric USA, Inc. GT13-2428/F4-5PCF(70)	24 AWG	28 AWG	M	Crimp	Pin	Copper Alloy	39.4 Áin	1 Ám	Free Hanging (In-Line)	Tin
Hirose Electric USA, Inc. GT13-2428/F4-5SCF(55)	24 AWG	28 AWG	F	Crimp	Socket	Copper Alloy			Free Hanging (In-Line)	Tin
Hirose Electric USA, Inc. GT13-2428/1.6-2.9SCF(70)	24 AWG	28 AWG	F	Crimp	Socket	Brass	39.4 Áin	1 Ám	Free Hanging (In-Line)	Tin
Hirose Electric USA, Inc. GT13-2428/1.6-2.9SCF(71)
Hirose Electric USA, Inc. GT13-2428/1.6-2.9SCF(55)	24 AWG	28 AWG	F	Crimp	Socket	Copper Alloy			Free Hanging (In-Line)	Tin
Hirose Electric USA, Inc. GT13-2428/1.6-2.5SCF(70)	24 AWG	28 AWG	F	Crimp	Socket	Copper Alloy	39.4 Áin	1 Ám	Free Hanging (In-Line)	Tin
Hirose Electric USA, Inc. GT13-2428/F4-5SCF(71)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Coax Tin Crimp M 24-28 AWG
