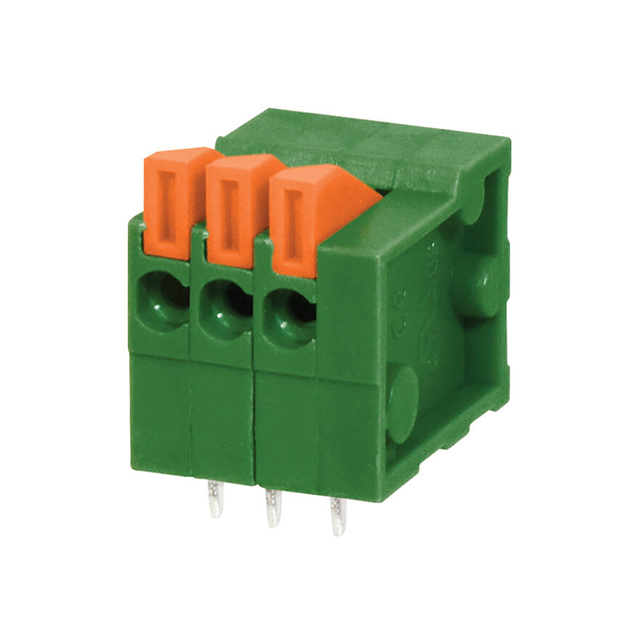

TBL003-254-03GR-2OR

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 2.54,

Search across all available documentation for this part.

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 2.54,

Technical Specifications

Parameters and characteristics for this part

Specification	TBL003-254-03GR-2OR

Clamp Material - Plating	Stainless, Steel
Color	Green
Contact Material - Plating	Copper Alloy - Tin Plated
Current	2 A
Features	Lever Actuated, Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Positions Per Level	3
Voltage	150 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless

Part	Current	Mating Orientation	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating	Features	Color	Number of Levels	Clamp Material - Plating	Positions Per Level	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Termination
CUI Devices TBL003-254-04GR-2OR	2 A	Horizontal with Board	150 V	20 AWG	24 AWG	Copper Alloy - Tin Plated	Interlocking (Side) Lever Actuated	Green	1	Stainless Steel	4	Through Hole	2.54 mm	0.1 in	-40 °C	105 ░C	Screwless
CUI Devices TBL003-254-06GR-2OR	2 A	Horizontal with Board	150 V	20 AWG	24 AWG	Copper Alloy - Tin Plated	Interlocking (Side) Lever Actuated	Green	1	Stainless Steel	6	Through Hole	2.54 mm	0.1 in	-40 °C	105 ░C	Screwless
CUI Devices TBL003-254-03GR-2OR	2 A	Horizontal with Board	150 V	20 AWG	24 AWG	Copper Alloy - Tin Plated	Interlocking (Side) Lever Actuated	Green	1	Stainless Steel	3	Through Hole	2.54 mm	0.1 in	-40 °C	105 ░C	Screwless
CUI Devices TBL003-254-07GR-2OR	2 A	Horizontal with Board	150 V	20 AWG	24 AWG	Copper Alloy - Tin Plated	Interlocking (Side) Lever Actuated	Green	1	Stainless Steel	7	Through Hole	2.54 mm	0.1 in	-40 °C	105 ░C	Screwless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole
