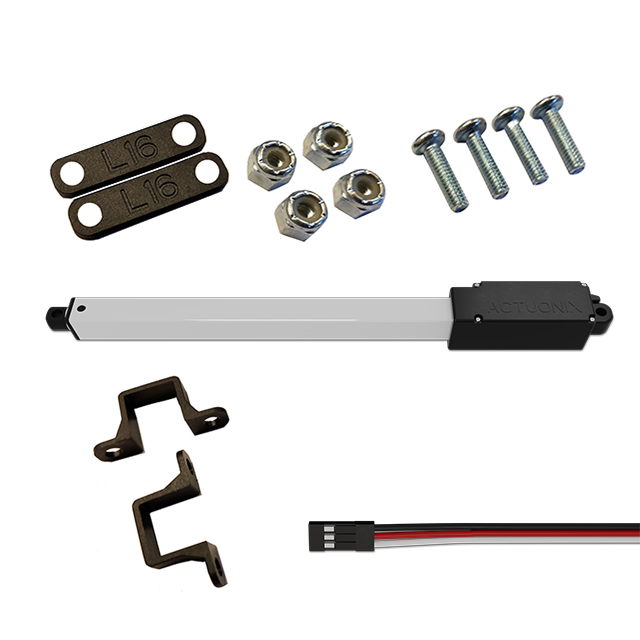

L16-140-150-6-R

Active

Actuonix Motion Devices Inc

L16-R MINIATURE LINEAR SERVO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L16-140-150-6-R

Active

Actuonix Motion Devices Inc

L16-R MINIATURE LINEAR SERVO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L16-140-150-6-R

Construction	Ball Screw
Duty Cycle	20 %
Features	RC Linear Servo
Gear Reduction Ratio	150
Ingress Protection	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	44.96 lbf
Load Force (Dynamic)	200 N
Load Force (Static)	250 N
Load Force (Static)	56.2 lbf
Motor Type	Brushed
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Speed	0.32 in/s
Speed	8 mm/s
Stroke Length	140 mm
Stroke Length	5.512 in
Type	Linear Actuator
Voltage - Rated	6 VDC

L16-140 Series

Part	Duty Cycle	Construction	Stroke Length	Stroke Length	Ingress Protection	Load Force (Dynamic)	Load Force (Dynamic)	Voltage - Rated	Speed	Speed	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Feedback Type	Type	Gear Reduction Ratio	Motor Type	Load Force (Static)	Load Force (Static)	Features
Actuonix Motion Devices Inc L16-140-150-12-P	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	44.96 lbf	200 N	12 VDC	0.32 in/s	8 mm/s	-10 °C	50 °C	Potentiometer	Linear Actuator	150	Brushed	250 N	56.2 lbf
Actuonix Motion Devices Inc L16-140-35-12-S	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	11.24 lbf	50 N	12 VDC	1.26 in/s	32 mm/s	-10 °C	50 °C		Linear Actuator	35	Brushed	250 N	56.2 lbf	Limit Switches
Actuonix Motion Devices Inc L16-140-63-6-R	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	22.48 lbf	100 N	6 VDC	0.79 in/s	20 mm/s	-10 °C	50 °C		Linear Actuator	63	Brushed	250 N	56.2 lbf	RC Linear Servo
Actuonix Motion Devices Inc L16-140-150-12-S	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	44.96 lbf	200 N	12 VDC	0.32 in/s	8 mm/s	-10 °C	50 °C		Linear Actuator	150	Brushed	250 N	56.2 lbf	Limit Switches
Actuonix Motion Devices Inc L16-140-63-12-P	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	22.48 lbf	100 N	12 VDC	0.79 in/s	20 mm/s	-10 °C	50 °C	Potentiometer	Linear Actuator	63	Brushed	250 N	56.2 lbf
Actuonix Motion Devices Inc L16-140-35-12-P	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	11.24 lbf	50 N	12 VDC	1.26 in/s	32 mm/s	-10 °C	50 °C	Potentiometer	Linear Actuator	35	Brushed	250 N	56.2 lbf
Actuonix Motion Devices Inc L16-140-35-6-R	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	11.24 lbf	50 N	6 VDC	1.26 in/s	32 mm/s	-10 °C	50 °C		Linear Actuator	35	Brushed	250 N	56.2 lbf	RC Linear Servo
Actuonix Motion Devices Inc L16-140-63-12-S	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	22.48 lbf	100 N	12 VDC	0.79 in/s	20 mm/s	-10 °C	50 °C		Linear Actuator	63	Brushed	250 N	56.2 lbf	Limit Switches
Actuonix Motion Devices Inc L16-140-150-6-R	20 %	Ball Screw	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	44.96 lbf	200 N	6 VDC	0.32 in/s	8 mm/s	-10 °C	50 °C		Linear Actuator	150	Brushed	250 N	56.2 lbf	RC Linear Servo

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

Description

General part information

L16-140 Series

L16-R MINIATURE LINEAR SERVO

Documents

Technical documentation and resources
