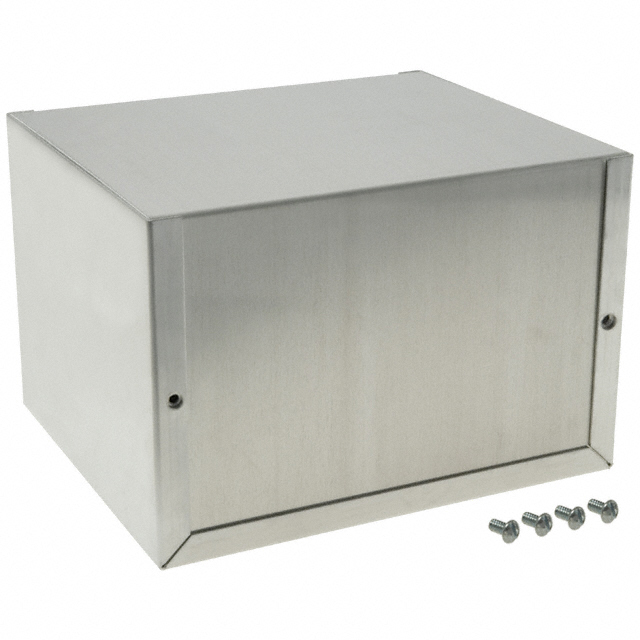

TF-781 PL/UNPD
ActiveLMB Heeger Inc.
CHASSIS ALUM UNPAINTED 6"L X 5"W
Deep-Dive with AI
Search across all available documentation for this part.
TF-781 PL/UNPD
ActiveLMB Heeger Inc.
CHASSIS ALUM UNPAINTED 6"L X 5"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TF-781 PL/UNPD |
|---|---|
| Area (L x W) | 30 in˛ |
| Area (L x W) | 194 cm˛ |
| Color | Unpainted |
| Container Type | Chassis |
| Design | U Shaped Pieces |
| Height [z] | 101.6 mm |
| Height [z] | 101.6 mm |
| Material | Metal, Aluminum |
| Size / Dimension [x] | 6 in |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.96 | |
| 5 | $ 21.61 | |||
| 10 | $ 20.26 | |||
| 25 | $ 18.91 | |||
| 50 | $ 18.57 | |||
| 100 | $ 18.23 | |||
| 250 | $ 17.96 | |||
| 500 | $ 17.55 | |||
Description
General part information
TF-781 Series
Chassis Metal, Aluminum Unpainted U Shaped Pieces 6.000" L x 5.000" W (152.40mm x 127.00mm) X 4.000" (101.60mm)
Documents
Technical documentation and resources
No documents available
