SSL2101T/DB/FBCB120V,598

Obsolete

Freescale Semiconductor - NXP

EVAL BOARD FOR SSL2101

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

EVAL BOARD FOR SSL2101

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Internal Switch(s)	Number of Outputs	Mounting Type	Frequency	Topology	Voltage - Supply (Min) [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Current - Output / Channel	Voltage - Supply (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Contents	Features	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Supplied Contents	Utilized IC / Part
Freescale Semiconductor - NXP SSL2101T/N1,518	TRIAC		1	Surface Mount	100 kHz	Flyback Step-Down (Buck)	8.5 V	16-SOIC	0.154 in	3.9 mm	2 A	40 V	AC DC Offline Switcher	-40 °C	100 °C	16-SO
Freescale Semiconductor - NXP SSL2101T/DB/FBCB120V,598											800 mA						Board(s)	Dimmable	1 Isolated Output	108 VAC	132 VAC	9 V	23 V	Board(s)	SSL2101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 101.00

General part information

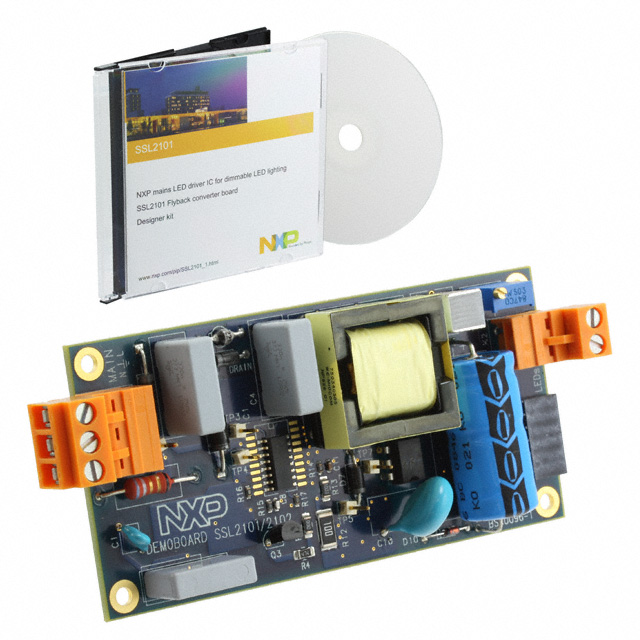

SSL2101 - 1 Isolated Output Dimmable LED Driver Evaluation Board
