QFWB-5-5-US01
ActiveQualtek

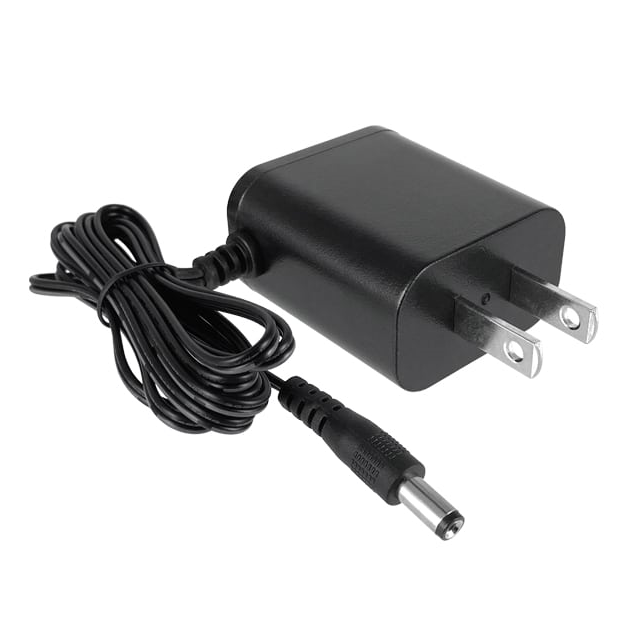

AC/DC WALL MOUNT ADAPTER 5V 6W
Deep-Dive with AI
Search across all available documentation for this part.
QFWB-5-5-US01
ActiveQualtek
AC/DC WALL MOUNT ADAPTER 5V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QFWB-5-5-US01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | North America |
| Size / Dimension [x] | 1.54 in |
| Size / Dimension [x] | 39.2 mm |
| Size / Dimension [y] | 24 mm |
| Size / Dimension [y] | 0.94 in |
| Size / Dimension [z] | 42 mm |
| Size / Dimension [z] | 1.65 " |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 5 V |
| Weight | 0.121 lb |
| Weight | 54.88 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.70 | |
| 10 | $ 7.12 | |||
| 100 | $ 6.16 | |||
| 1000 | $ 5.39 | |||
Description
General part information
QFWB-5 Series
5V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
