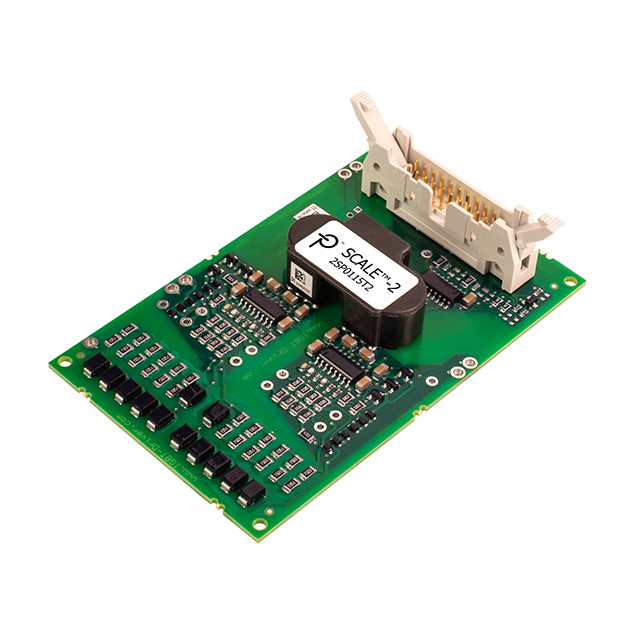

2SP0115T2C0-12

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	2SP0115T2C0-12

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	8 A
Current - Peak Output (Source, Sink) [custom]	15 A
Driven Configuration	Half-Bridge
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1200 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	5 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15.5 V
Voltage - Supply [Min]	14.5 V

Part	Package / Case	High Side Voltage - Max (Bootstrap) [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Supplier Device Package	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Drivers	Channel Type
Power Integrations 2SP0115T2A0-12	Module	1200 V	8 A	15 A	IGBT	Module	Half-Bridge	5 ns	10 ns	14.5 V	15.5 V	-20 °C	85 C	Surface Mount	2	Independent
Power Integrations 2SP0115T2B0-06	Module	600 V	8 A	15 A	IGBT	Module	Half-Bridge	5 ns	10 ns	14.5 V	15.5 V	-20 °C	85 C	Surface Mount	2	Independent
Power Integrations 2SP0115T2A0-17	Module	1700 V	8 A	15 A	IGBT	Module	Half-Bridge	5 ns	10 ns	14.5 V	15.5 V	-20 °C	85 C	Surface Mount	2	Independent
Power Integrations 2SP0115T2B0-12	Module	1200 V	8 A	15 A	IGBT	Module	Half-Bridge	5 ns	10 ns	14.5 V	15.5 V	-20 °C	85 C	Surface Mount	2	Independent
Power Integrations 2SP0115T2C0-12	Module	1200 V	8 A	15 A	IGBT	Module	Half-Bridge	5 ns	10 ns	14.5 V	15.5 V	-40 °C	85 °C	Surface Mount	2	Independent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half-Bridge Gate Driver IC Module

Technical documentation and resources

No documents available
