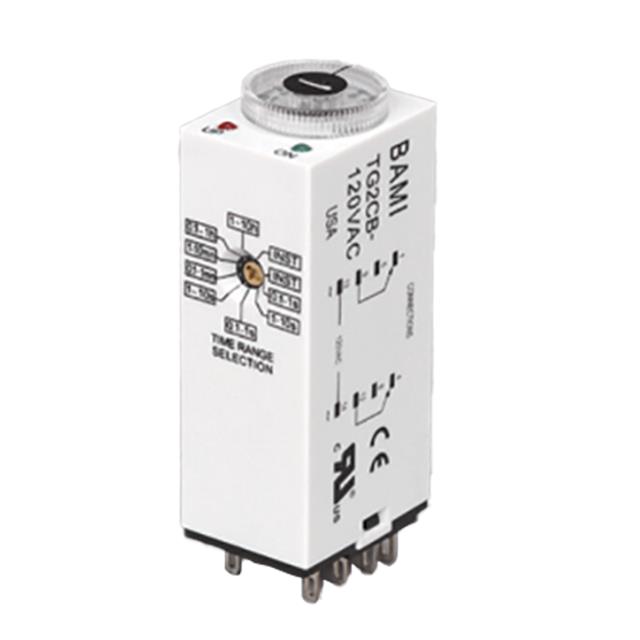

TGC2CB-240VAC-18M
ActiveR-K Electronics, Inc.
RELAY TIME DELAY 10HR 3A 240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TGC2CB-240VAC-18M
ActiveR-K Electronics, Inc.
RELAY TIME DELAY 10HR 3A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TGC2CB-240VAC-18M |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 3 A, 30 VDC, 240 VAC |
| Delay Time [Max] | 10 Hrs |
| Delay Time [Min] | 1 Min |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 62.00 | |
| 10 | $ 55.80 | |||
| 30 | $ 50.22 | |||
Description
General part information
TGC2C Series
On-Delay Time Delay Relay DPDT (2 Form C) 1 Min ~ 10 Hrs Delay 3A @ 240VAC/30VDC Socketable
