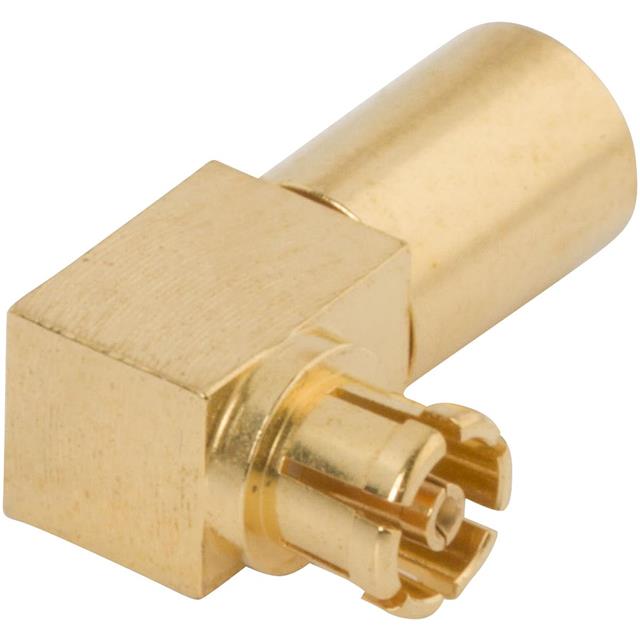

3222-40005

Active

Amphenol SV Microwave

CONN SMPM 0HZ TO 40GHZ 50OHM RA CABLE MOUNT F GOLD OVER NICKEL BAG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMPM 0HZ TO 40GHZ 50OHM RA CABLE MOUNT F GOLD OVER NICKEL BAG

Technical Specifications

Parameters and characteristics for this part

Specification	3222-40005

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1

Part	Contact Termination	Housing Color	Mounting Type	Dielectric Material	Center Contact Material	Fastening Type	Connector Type	Connector Style	Frequency - Max [Max]	Body Finish	Body Material	Impedance	Shield Termination	Includes	Number of Ports	Cable Group	Cable Group	Center Contact Plating
Amphenol SV Microwave 3222-40002	Solder	Gold	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On	Female Socket Jack	SMPM	18 GHz	Gold	Beryllium Copper	50 Ohms	Solder	1 Connector 1 End Cap	1	0.085 in	RG-405	Gold
Amphenol SV Microwave 3222-40005	Solder	Gold	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Brass	Snap-On	Female Socket Jack	SMPM	40 GHz	Gold	Beryllium Copper	50 Ohms			1	0.085 in	RG-405	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
