19362 010250

Active

Belden Inc.

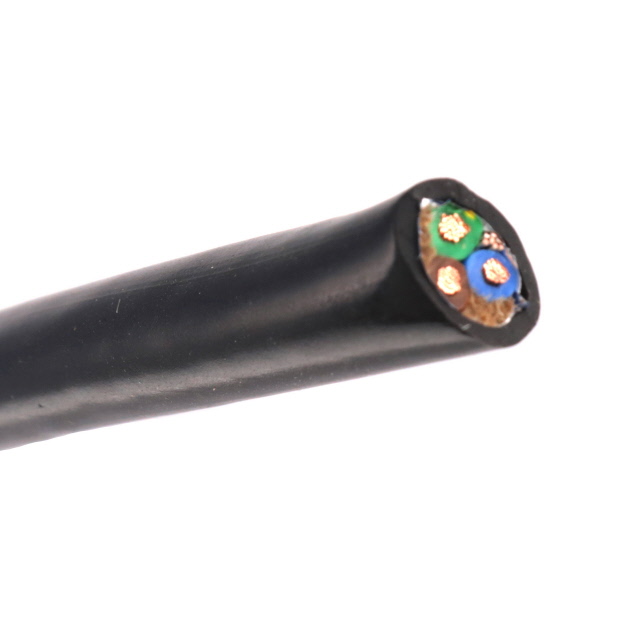

CABLE 3COND 18AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	19362 010250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	34 AWG, 42
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SJT
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Type	Voltage	Wire Gauge	Conductor Insulation	Cable Type	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Shield Coverage	Usage	Ratings	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket Color	Conductor Material	Length	Length
Belden Inc. 19362 010500	Foil	300 V	18 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	34 AWG 42	1.27 mm	0.05 in	Aluminum	100 %	Cord and Cordset	UL Style SJT	3	0.34 in	8.64 mm	Drain Wire	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Black	Copper Bare
Belden Inc. 19362 010250	Foil	300 V	18 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	34 AWG 42	1.27 mm	0.05 in	Aluminum	100 %	Cord and Cordset	UL Style SJT	3	0.34 in	8.64 mm	Drain Wire			Poly-Vinyl Chloride (PVC)	Black	Copper Bare	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG Foil 250.0' (76.2m)
