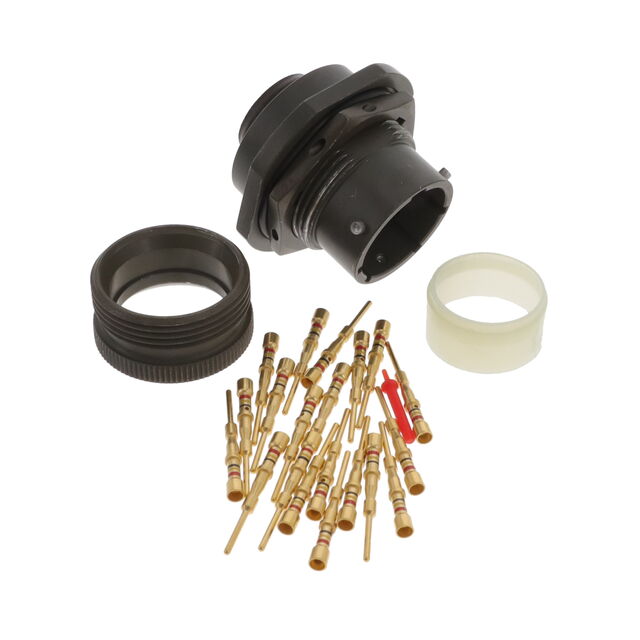

MS3124E14-18P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

MS3124E14-18P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3124E14-18P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	14
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

MS3124E14 Series

Part	Color	Shell Finish	Grade	Mounting Feature	Ingress Protection	Orientation	Shell Size - Insert	Termination	Voltage Rating	Primary Material	Qualification	Current Rating (Amps)	Contact Material	Applications	Fastening Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Number of Positions	Contact Finish - Mating	Shielding	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Features	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Backshell Material, Plating
Amphenol Industrial Operations MS3124E14-12P	Olive Drab	Olive Drab Chromate over Cadmium	Military	Bulkhead - Front Side Nut	Environment Resistant	N	14-12	Crimp	600 VAC	Metal	MIL-DTL-26482 Series I	7.5 A 13 A	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Neoprene	-55 °C	125 °C	Aluminum	12	Gold	Unshielded	Male Pins Receptacle
Amphenol Industrial Operations MS3124E14-18S
Amphenol Industrial Operations MS3124E14-15P
Amphenol Industrial Operations MS3124E14-12S	Olive Drab	Olive Drab Chromate over Cadmium	Military	Bulkhead - Front Side Nut	Environment Resistant	N	14-12	Crimp	600 VAC	Metal	MIL-DTL-26482 Series I	7.5 A 13 A	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Neoprene	-55 °C	125 °C	Aluminum	12	Gold	Unshielded	Receptacle Female Sockets
Amphenol Industrial Operations MS3124E14-5S	Olive Drab	Olive Drab Chromate over Cadmium	Military	Bulkhead - Front Side Nut	Environment Resistant	N	14-5	Crimp	1000 VAC	Metal	MIL-DTL-26482 Series I	13 A	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Neoprene	-55 °C	125 °C	Aluminum		Gold	Unshielded	Receptacle Female Sockets
Amphenol Industrial Operations MS3124E14-15P(LC)
Amphenol Industrial Operations MS3124E14-5P(LC)
Amphenol Industrial Operations MS3124E14-18P	Olive Drab	Olive Drab Chromate over Cadmium	Military	Bulkhead - Front Side Nut	Environment Resistant	N		Crimp	600 VAC	Metal	MIL-DTL-26482 Series I	7.5 A	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Neoprene	-55 °C	125 °C	Aluminum	18	Gold	Unshielded	Male Pins Receptacle	14	18
Amphenol Industrial Operations MS3124E14-19SY	Olive Drab	Olive Drab Chromate over Cadmium	Military	Bulkhead - Front Side Nut	Environment Resistant	Y		Crimp		Metal	MIL-DTL-26482 Series I		Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	Neoprene	-55 °C	125 °C	Aluminum	19	Gold	Unshielded	Receptacle Female Sockets			Backshell	19	14	Aluminum Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3124E14-19SW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 155.91
		10	$ 144.47
		25	$ 139.28
		50	$ 138.24

Description

General part information

MS3124E14 Series

18 Position Circular Connector Receptacle, Male Pins Crimp
