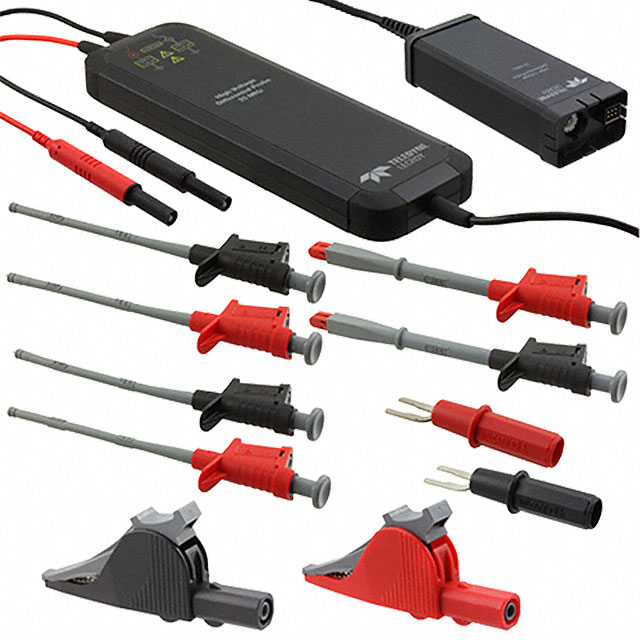

HVD3106A
ActiveOSCILLOSCOPE PROBE, HIGH-VOLTAGE DIFFERENTIAL PROBE, 120 MHZ, 1 KV, 50:1, 500:1
Deep-Dive with AI
Search across all available documentation for this part.
HVD3106A
ActiveOSCILLOSCOPE PROBE, HIGH-VOLTAGE DIFFERENTIAL PROBE, 120 MHZ, 1 KV, 50:1, 500:1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HVD3106A |
|---|---|
| Attenuation Value [custom] | 500:1, 50:1 |
| Bandwidth | 120 MHz |
| Cable Length | 88.583 in |
| Cable Length | 2250 mm |
| Capacitance - Input | 2.5 pF |
| Includes | Probes, Manual |
| Resistance - Input | 10 M |
| Type | Voltage Probe, Differential |
| Voltage - Max | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HVD3106 Series
HVD3106A is a HVD3000A series, 1KV, 120MHz high voltage differential probe with 2m cable. The HVD3000A series high voltage differential probes provide high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments. The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.
