1863A D261000

Active

Belden Inc.

#18 TW PR FLRST BLK & NAT

Search across all available documentation for this part.

Active

Belden Inc.

#18 TW PR FLRST BLK & NAT

Technical Specifications

Parameters and characteristics for this part

Specification	1863A D261000

Cable Type	Speaker
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.178 in
Jacket (Insulation) Diameter [diameter]	4.52 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.022 in
Jacket (Insulation) Thickness	0.559 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Voltage	150 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Number of Conductors	Jacket Color	Conductor Material
Belden Inc. 1863A D261000	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	19	30 AWG	0.022 in	0.559 mm	18 AWG	150 V	0.178 in	4.52 mm	Speaker	Poly-Vinyl Chloride (PVC)	2	Black	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.50

General part information

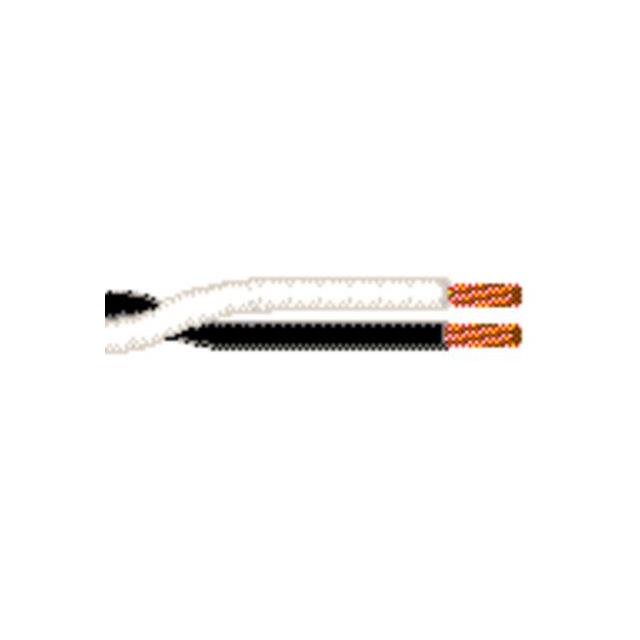

2 (1 Pair Twisted) Conductor Speaker Cable Black 18 AWG 1000.0' (304.8m)

Technical documentation and resources
