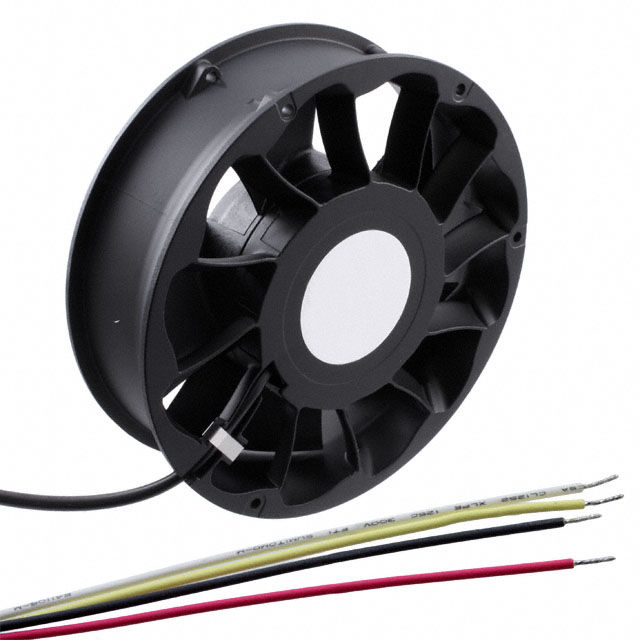

R172A5-051-D0760

Active

NMB TECHNOLOGIES

FAN AXIAL 172.7X50.8MM 48VDC

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 172.7X50.8MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	R172A5-051-D0760

Air Flow	11.45 mł/min
Air Flow	409 CFM
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	74 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	76.8 W
RPM	6300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172.7 mm
Static Pressure	3.02 in H2O
Static Pressure	752.3 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	2.4 lbs
Weight	1.1 kg
Width [y]	2 "

Part	RPM	Air Flow	Air Flow	Weight	Weight	Size / Dimension [diameter]	Size / Dimension	Material - Blade	Width [y]	Current Rating (Amps)	Fan Type	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Power (Watts)	Features	Noise	Bearing Type	Voltage - Rated [custom]	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Static Pressure	Static Pressure	Termination	Material - Frame
NMB TECHNOLOGIES R172A5-051-D0760	6300 RPM	11.45 mł/min	409 CFM	2.4 lbs	1.1 kg	172.7 mm	Round	Plastic	2 "	1.6 A	Tubeaxial	-30 °C	-22 °F	70 °C	158 °F	76.8 W	PWM Control Speed Sensor (Tach)	74 dB(A)	Ball	48 VDC	30 VDC	72 VDC	70000 Hrs	3.02 in H2O	752.3 Pa	4 Wire Leads	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 175.44
Newark	Each	1	$ 251.87
		100	$ 244.19

General part information

Fan Tubeaxial 48VDC Round - 172.7mm Dia Ball 409.0 CFM (11.45mł/min) 4 Wire Leads
