UT018LPGN

Active

Souriau-Sunbank by Eaton

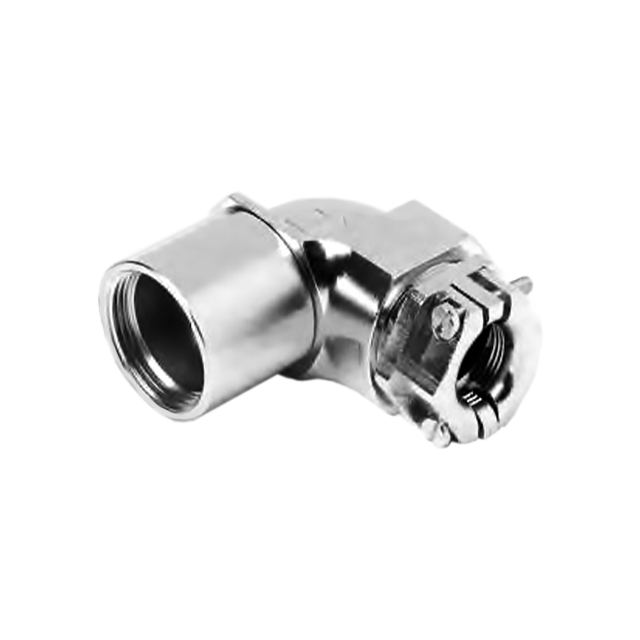

UTO18LPGN METAL RIGHT ANGLE CABLE CLAMP WITH STRAIN RELIEF NUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

UT018LPGN

Active

Souriau-Sunbank by Eaton

UTO18LPGN METAL RIGHT ANGLE CABLE CLAMP WITH STRAIN RELIEF NUT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT018LPGN

Cable Exit	90 °
Cable Opening [Max] [custom]	0.807 in
Cable Opening [Max] [custom]	20.5 mm
Cable Opening [Min] [custom]	0.315 in
Cable Opening [Min] [custom]	8 mm
Color	Silver
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Brass
Material Flammability Rating	UL94 V-0
Shell Size - Insert	18
Shielding	Unshielded
Thread Size	PG16
Type	Backshell, Cable Clamp

UT018 Series

Part	Cable Exit	Type	Thread Size	Material	Ingress Protection	For Use With/Related Products	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Features	Shielding	Color	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Plating	Includes	Accessory Type
Souriau-Sunbank by Eaton UT018JCS	180 °	Backshell Cable Clamp	PG16	Brass	IP68 IP69K	Trim Trio® UTO and UTOW Connectors	14 mm	9.5 mm	0.374 in	0.551 in	18	Sealing Gland Strain Relief	Unshielded	Silver	UL94 V-0
Souriau-Sunbank by Eaton UT018JCSL	180 °	Backshell Cable Clamp		Brass	IP68 IP69K	Trim Trio® UTO and UTOW Connectors					18	Sealing Gland Strain Relief	Unshielded	Silver	UL94 V-0
Souriau-Sunbank by Eaton UT018LPGN	90 °	Backshell Cable Clamp	PG16	Brass		Trim Trio® UTO and UTOW Connectors		8 mm	0.315 in	0.807 in	18	Clamp Screws Strain Relief	Unshielded	Silver	UL94 V-0	20.5 mm
Souriau-Sunbank by Eaton UT018JCL	180 °	Backshell Cable Clamp	PG16	Brass	IP68 IP69K	Trim Trio® UTO and UTOW Connectors					18	Sealing Gland Strain Relief	Unshielded	Silver	UL94 V-0
Souriau-Sunbank by Eaton UT018JCPGN	180 °	Backshell Cable Clamp	PG16	Aluminum Alloy	IP65 - Dust Tight Water Resistant	Trim Trio® UTO and UTOW Connectors					18	Clamp Screws Strain Relief	Unshielded	Silver	UL94 V-0		0.65 in	16.5 mm	Nickel	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT018JC	180 °	Backshell Cable Clamp	PG16	Brass	IP68 IP69K	Trim Trio® UTO and UTOW Connectors	14 mm	9.5 mm	0.374 in	0.551 in	18	Sealing Gland Strain Relief	Unshielded	Silver	UL94 V-0
Souriau-Sunbank by Eaton UT018DCG				Metal		Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles					18	Dust Tight Metal Chain Waterproof		Silver							Cap (Cover) Dust

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 154.78
Newark	Each	1	$ 251.43
		50	$ 233.87
		100	$ 226.14
		500	$ 208.96
		1000	$ 206.14
		2500	$ 204.83
		5000	$ 186.52

Description

General part information

UT018 Series

Silver Connector Backshell, Cable Clamp PG16 18

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
