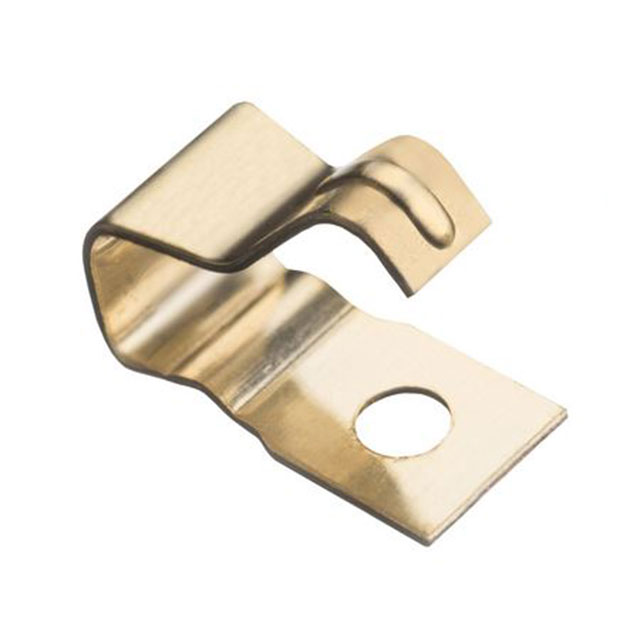

S7171-45R - S7171-45R

S7171-45R

Active
Harwin Inc.

EMI SHIELDING, PHOSPHOR BRONZE, 4.6 MM LENGTH, 2.3 MM WIDTH, 4 MM DEPTH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetS1741-46R+2
S7171-45R - S7171-45R

S7171-45R

Active
Harwin Inc.

EMI SHIELDING, PHOSPHOR BRONZE, 4.6 MM LENGTH, 2.3 MM WIDTH, 4 MM DEPTH

Deep-Dive with AI

DocumentsDatasheetS1741-46R+2

Technical Specifications

Parameters and characteristics for this part

SpecificationS7171-45R
Attachment MethodSolder
Height [z]4 mm
Height [z]0.157 "
Length4.6 mm
Length0.181 in
MaterialPhosphor Bronze
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
PlatingGold
Plating - ThicknessFlash
TypeShield Finger
Width [x]0.091 in
Width [x]2.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.48
10$ 0.41
25$ 0.38
100$ 0.31
250$ 0.28
500$ 0.24
Digi-Reel® 1$ 0.48
10$ 0.41
25$ 0.38
100$ 0.31
250$ 0.28
500$ 0.24
Tape & Reel (TR) 1800$ 0.19
3600$ 0.17
5400$ 0.16
12600$ 0.15
45000$ 0.14
NewarkEach (Supplied on Full Reel) 2000$ 0.18
4000$ 0.17
8000$ 0.15

Description

General part information

S7171 Series

EMI SHIELDING, PHOSPHOR BRONZE, 4.6 MM LENGTH, 2.3 MM WIDTH, 4 MM DEPTH
