Technical Specifications
Parameters and characteristics for this part
| Specification | WSTM4527QLR015FMR |
|---|---|
| Features | High Voltage, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 4 W |
| Resistance | 15 mOhms |
| Size / Dimension [x] | 11.61 mm |
| Size / Dimension [x] | 0.457 in |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.1 mm |
| Supplier Device Package | 4527 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.26 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.46 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.26 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.41 | |||
| Tape & Reel (TR) | 1000 | $ 1.17 | ||
Description
General part information

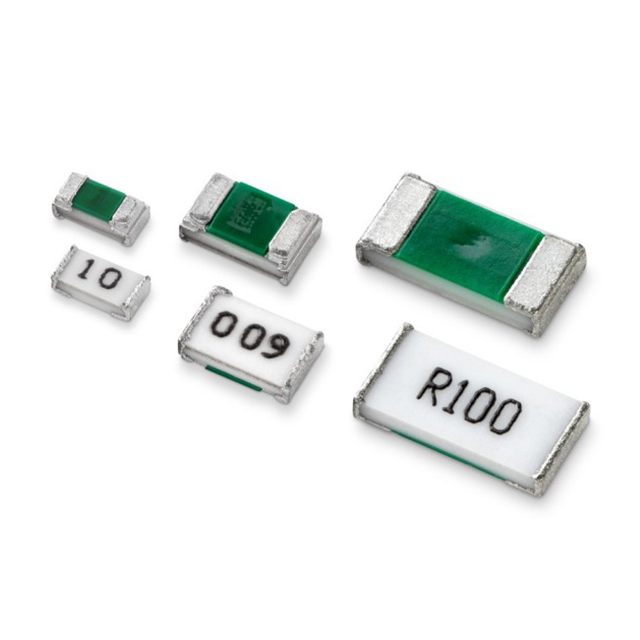

WSTM4527QLR015F Series
Littelfuse WSTM Series low ohm current sense resistor is designed with long term stability in mind. This series is durable, excels at heat dissipation. The small package is optimal for most applications.
