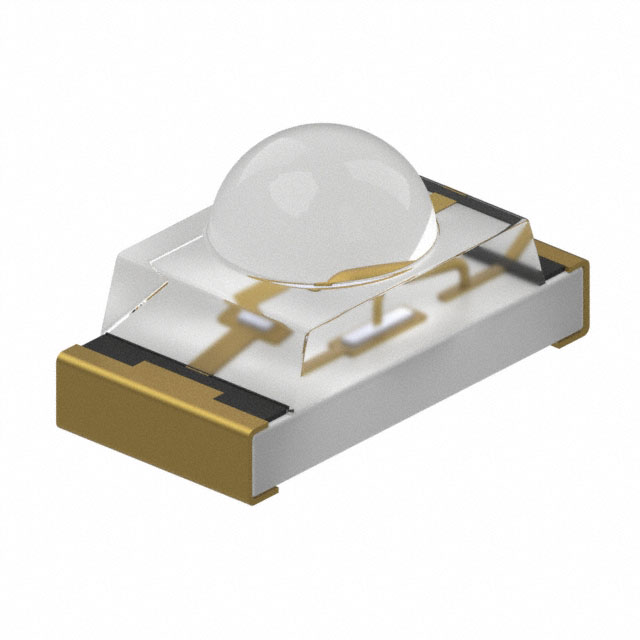

HSMR-C320
ActiveBroadcom Limited
LED BLUE 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMR-C320
ActiveBroadcom Limited
LED BLUE 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMR-C320 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.08 mm |
| Lens Size [diameter] | 0.7 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 653 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 473 nm |
| Wavelength - Peak [custom] | 469 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.76 | |||
| 100 | $ 0.56 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.76 | |||
| 100 | $ 0.56 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.33 | ||
| 6000 | $ 0.32 | |||
Description
General part information
HSMR Series
Blue 473nm LED Indication - Discrete 3V 0603 (1608 Metric)
