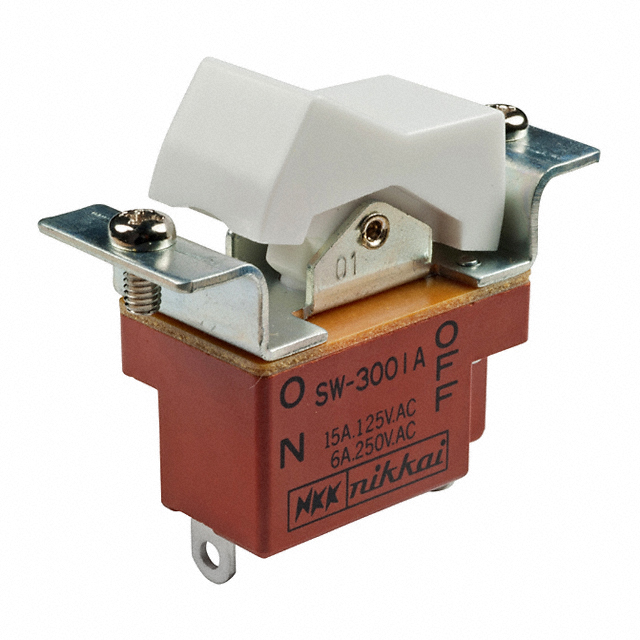

SW3001A

Active

NKK Switches

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	SW3001A

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	SPST
Color - Actuator/Cap	White
Current Rating (Amps)	15 A
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current Rating (Amps)	Termination Style	Color - Actuator/Cap	Mounting Type	Electrical Life	Voltage Rating - AC	Actuator Type	Actuator Marking	Voltage Rating - DC	Approval Agency	Circuit
NKK Switches SW3001A	On-Off	-10 °C	158 °F	15 A	Solder Lug	White	Flange Panel Mount	25000 Steps	125 V	Concave (Standard V)	No Marking	30 V	CSA UL	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (AC/DC) 125 V Panel Mount, Flange
