LY T676-R1S2-26-Z

Active

ams-OSRAM USA INC.

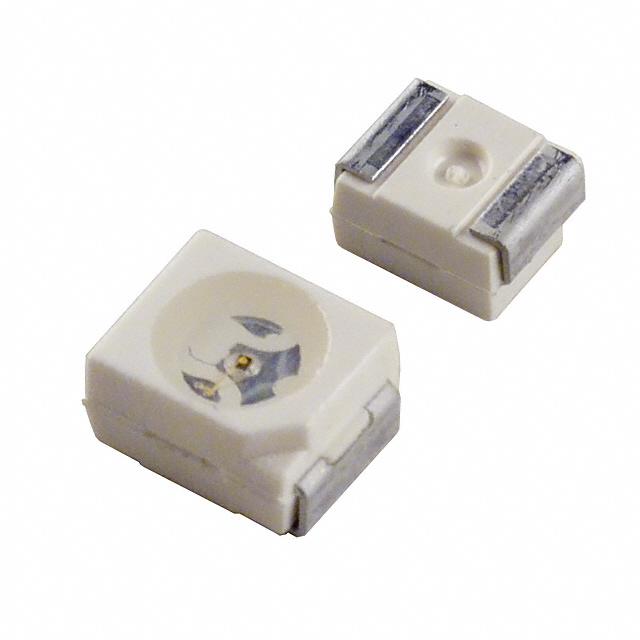

LED YELLOW 591NM CLR 2-PLCC SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED YELLOW 591NM CLR 2-PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LY T676-R1S2-26-Z

null

Part	Configuration	Package / Case	Supplier Device Package	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Color	Viewing Angle	Mounting Type	Current - Test	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size [diameter]	Wavelength - Peak	Height (Max) [Max] [z]	Lens Transparency	Lens Color
ams-OSRAM USA INC. LY T676-Q1R1-4-0-20-R33-Z	Standard	2-PLCC	2-PLCC	2.8 mm	2.8 mm	3.2 mm	Yellow	120 °	Surface Mount
ams-OSRAM USA INC. LY T676-R2S2-46-Z		2-PLCC	2-PLCC		2.8 mm	3.2 mm	Yellow	120 °	Surface Mount	20 mA	210 mcd	2 V	587 nm	2.4 mm	591 nm	2.1 mm
ams-OSRAM USA INC. LY T676-Q2R2-46-L-Z		2-PLCC	2-PLCC		2.8 mm	3.2 mm	Yellow	120 °	Surface Mount	20 mA	135 mcd	2 V	587 nm	2.4 mm	591 nm	2.1 mm
ams-OSRAM USA INC. LY T676-S1T1-26/Q65110A1419
ams-OSRAM USA INC. LY T676-R1S2-26-Z
ams-OSRAM USA INC. LY T676-R1S2-26	Standard	2-PLCC	2-PLCC		2.8 mm	3.2 mm	Yellow	120 °	Surface Mount	20 mA	196 mcd	2 V	587 nm	2.4 mm	591 nm	2.1 mm	Clear	Colorless
ams-OSRAM USA INC. LY T676-S1T1-35-Z		2-PLCC	2-PLCC		2.8 mm	3.2 mm	Yellow	120 °	Surface Mount	20 mA	267.5 mcd	2 V	587 nm	2.4 mm	591 nm	2.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED YELLOW 591NM CLR 2-PLCC SMD

Technical documentation and resources
