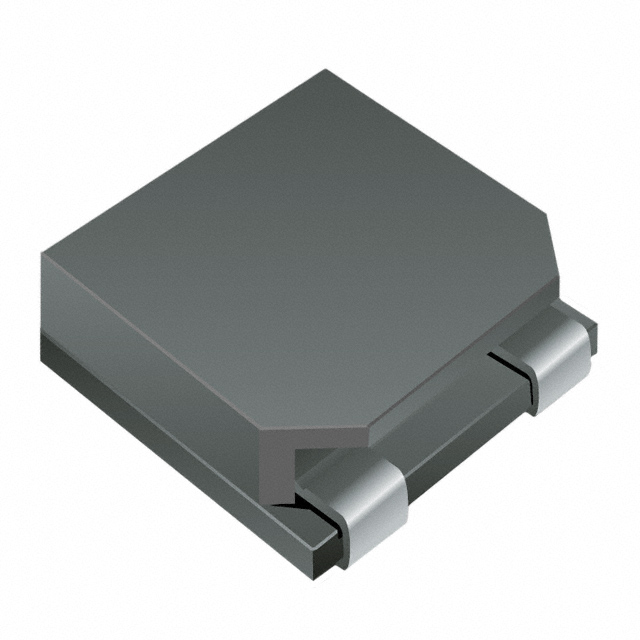

SRR1305-1R4ZL
ActiveBourns Inc.
INDUCTOR,FERRITE,1.4UH,25+% TOL,25-% TOL,4949-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRR1305-1R4ZL
ActiveBourns Inc.
INDUCTOR,FERRITE,1.4UH,25+% TOL,25-% TOL,4949-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR1305-1R4ZL |
|---|---|
| Current - Saturation (Isat) | 18 A |
| Current Rating (Amps) | 16 A |
| DC Resistance (DCR) [Max] | 3.4 mOhm |
| Height - Seated (Max) [Max] [z] | 5.3 mm |
| Height - Seated (Max) [Max] [z] | 0.209 in |
| Inductance | 1.4 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Tolerance | 25 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRR1305 Series
1.4 µH Shielded Drum Core, Wirewound Inductor 16 A 3.4mOhm Max Nonstandard
