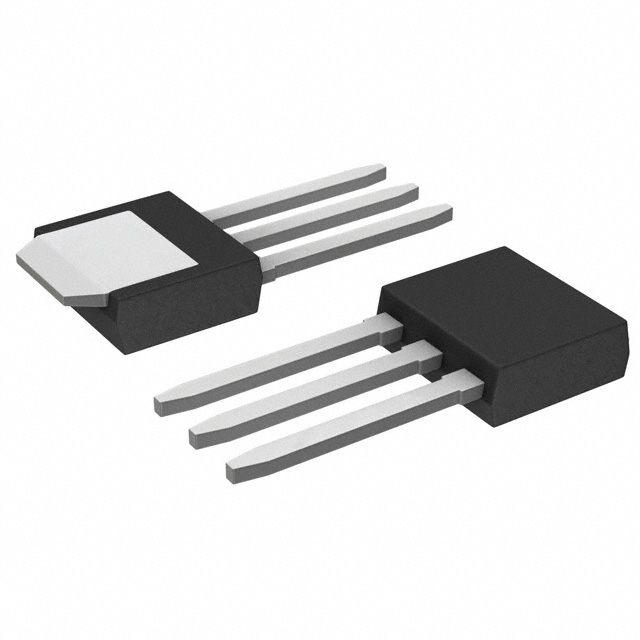

BT258U-600R,127

Active

WeEn Semiconductors Co., Ltd

SCR 600V 8A IPAK

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

SCR 600V 8A IPAK

Technical Specifications

Parameters and characteristics for this part

Specification	BT258U-600R,127

Current - Gate Trigger (Igt) (Max) [Max]	200 µA
Current - Hold (Ih) (Max) [Max]	6 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	82 A, 75 A
Current - On State (It (AV)) (Max) [Max]	5 A
Current - On State (It (RMS)) (Max) [Max]	8 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	IPAK, TO-251-3 Short Leads, TO-251AA
SCR Type	Sensitive Gate
Supplier Device Package	IPAK
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	600 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Mounting Type	Voltage - On State (Vtm) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	SCR Type	Supplier Device Package
WeEn Semiconductors Co., Ltd BT258X-500R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	500 V	Through Hole	1.6 V	200 µA	TO-220-3 Full Pack Isolated Tab	6 mA	8 A	Sensitive Gate	TO-220F
WeEn Semiconductors Co., Ltd BT258-500R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	500 V	Through Hole	1.6 V	200 µA	TO-220-3	6 mA	8 A	Sensitive Gate	TO-220AB
WeEn Semiconductors Co., Ltd BT258X-800R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	800 V	Through Hole	1.6 V	200 µA	TO-220-3 Full Pack Isolated Tab	6 mA	8 A	Sensitive Gate	TO-220F
WeEn Semiconductors Co., Ltd BT258U-600R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	600 V	Through Hole	1.5 V	200 µA	IPAK TO-251-3 Short Leads TO-251AA	6 mA	8 A	Sensitive Gate	IPAK
WeEn Semiconductors Co., Ltd BT258-800R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	800 V	Through Hole	1.6 V	200 µA	TO-220-3	6 mA	8 A	Sensitive Gate	TO-220AB
WeEn Semiconductors Co., Ltd BT258X-600R,127	1.5 V	125 °C	-40 °C	5 A	75 A 82 A	600 V	Through Hole	1.6 V	200 µA	TO-220-3 Full Pack Isolated Tab	6 mA	8 A	Sensitive Gate	TO-220F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	7500	$ 0.36

General part information

SCR 600 V 8 A Sensitive Gate Through Hole IPAK
