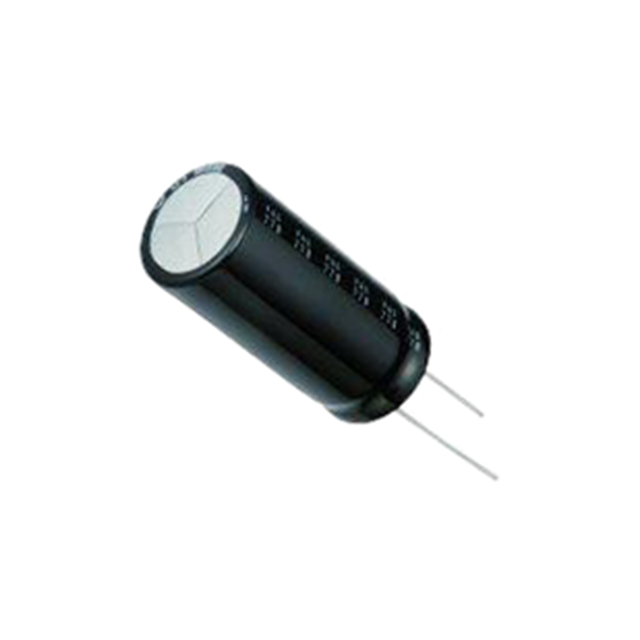

PAS1030LN2R7705

Obsolete

TAIYO YUDEN

CAP 7F 20% 2.7V T/H

Search across all available documentation for this part.

Obsolete

TAIYO YUDEN

CAP 7F 20% 2.7V T/H

Technical Specifications

Parameters and characteristics for this part

Specification	PAS1030LN2R7705

Capacitance	7 F
ESR (Equivalent Series Resistance)	80 mOhm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Termination	PC Pins
Tolerance	20 %
Voltage - Rated	2.7 VDC

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	Termination	Voltage - Rated
TAIYO YUDEN PAS1030LN2R7705	10 mm	0.394 in	5 mm	0.197 in	80 mOhm	20 %	Radial Can	-40 °C	70 °C	Through Hole	7 F	PC Pins	2.7 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 F (EDLC) Supercapacitor 2.7 V Radial, Can 80mOhm @ 1kHz
