GA342A1XGF470JW31L

Active

Murata Power Solutions Inc.

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 5% +TOL, 5% -TOL, SL, -1000/+350PPM/CEL TC, 0.000047UF, SURFACE MOUNT, 1808, CHIP, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 5% +TOL, 5% -TOL, SL, -1000/+350PPM/CEL TC, 0.000047UF, SURFACE MOUNT, 1808, CHIP, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Voltage - Rated	Capacitance	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Package / Case	Ratings [custom]	Ratings [custom]
Murata Power Solutions Inc. GA342A1XGF100JW31L	Y2	250 VAC	10 pF	5 %	1 mm	0.039 in	MLCC Surface Mount	SL	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	Safety	1808	4520 Metric
Murata Power Solutions Inc. GA342A1XGF150JW31L		250 VAC	15 pF	5 %	1 mm	0.039 in	MLCC Surface Mount	SL	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	Safety	1808	4520 Metric	2	1
Murata Power Solutions Inc. GA342A1XGF390JW31L		250 V	39 pF	5 %	1 mm	0.039 in	MLCC Surface Mount	SL	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	Safety	1808	4520 Metric	2	1
Murata Power Solutions Inc. GA342A1XGF120JW31L		250 VAC	12 pF	5 %	1 mm	0.039 in	MLCC Surface Mount	SL	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	Safety	1808	4520 Metric	2	1
Murata Power Solutions Inc. GA342A1XGF470JW31L		250 VAC	47 pF	5 %	1 mm	0.039 in	MLCC Surface Mount	SL	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	Safety	1808	4520 Metric	2	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

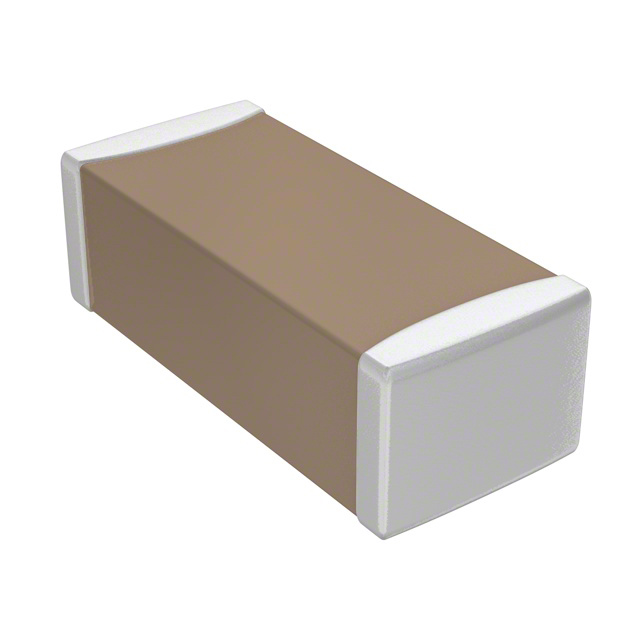

47 pF ±5% 250VAC Ceramic Capacitor SL 1808 (4520 Metric)
